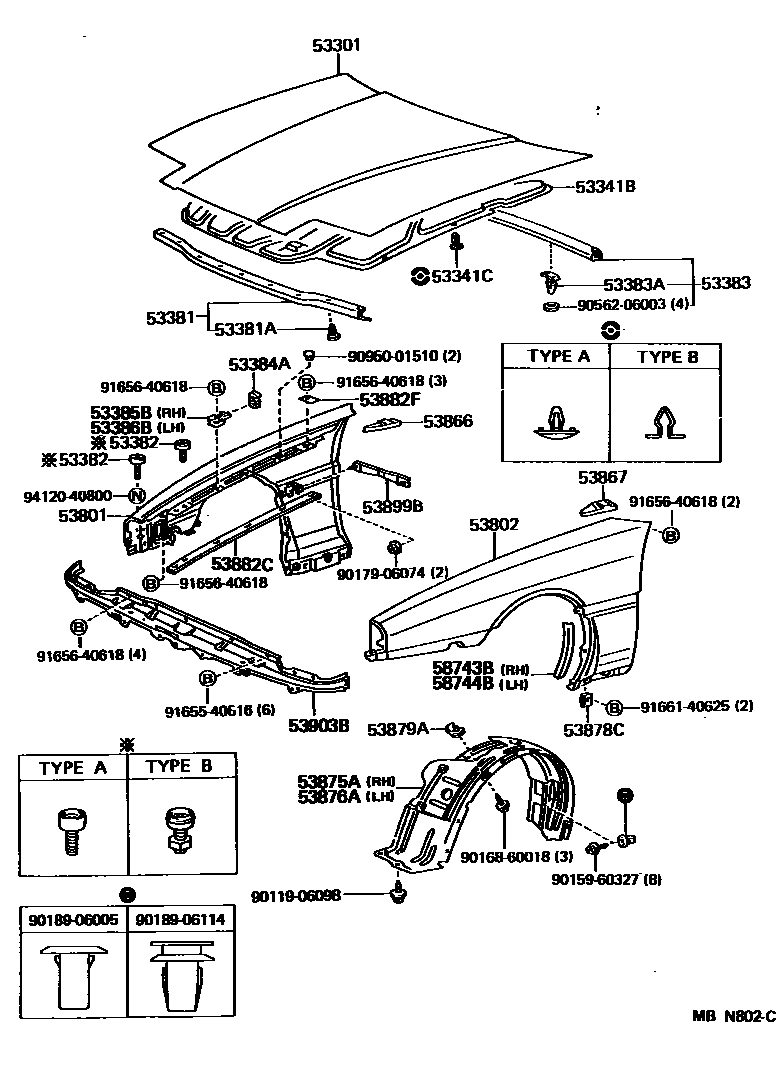

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-14322iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

53341BINSULATOR, HOOD

main53341-14100iMA70198808-199305

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081iMA70198808-199305

TYPE A

main90467-11035iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

TYPE B

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-14121iMA70198808-199305

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iMA70198808-199305

OD=13

main90467-11031iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

OD=15

53382BUMPER, HOOD, FRONT

main53382-14010iMA70198808-199305

TYPE B

main53382-60010iMA70199008-199305

TYPE A

sub53382-60011

main53382-90K01iMA70198808-199008

TYPE A

53383SEAL, HOOD TO COWL TOP

main53383-14100iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08044iMA70198808-199305

INSIDE

sub90467-08011

main90467-08050iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

OUTSIDE

53384ABUMPER, FENDER TO HOOD

main53384-14040iMA70198808-199305

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-14010iMA70198808-199305

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-14010iMA70198808-199305

53801FENDER SUB-ASSY, FRONT RH

main53801-14840iMA70198808-199305

53802FENDER SUB-ASSY, FRONT LH

main53802-14820iMA70198808-199305

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-14010iMA70198808-199305

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-14010iMA70198808-199305

53875ALINER, FRONT FENDER, RH

main53875-14180iMA70198808-199305

53876ALINER, FRONT FENDER, LH

main53876-14180iMA70198808-199305

53878CSPACER, FRONT FENDER

main53878-14020iMA70198808-199305

53879ARETAINER, FRONT FENDER LINER

main53879-14020iMA70198808-199305

53882CSEAL, FRONT FENDER MAIN

main53882-14110iMA70198808-198905

53882FSEAL, FRONT FENDER

main53882-14120iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA199003-199305

53899BSUPPORT, FRONT FENDER PANEL

main53899-14010iMA70198808-199305

53903BPANEL SUB-ASSY, FRONT END

main53903-14080iMA70198808-199305

58743BPROTECTER, FRONT FENDER PANEL, RH

main58743-14010iMA70198808-199305

58744BPROTECTER, FRONT FENDER PANEL, LH

main58743-14010iMA70198808-199305

9011906098

main90119-06098

9015960327

main90159-60327

9016860018

main90168-60018

9017906074

main90179-06074

9018906005

main90189-06005

9018906114

main90189-06114

9056206003

main90562-06003

9095001510

main90950-01510

9165540616

main91655-40616

9165640618

main91656-40618

9166140625

main91661-40625

9412040800

main94120-40800

37 parts on this diagram · 1 diagram in section
