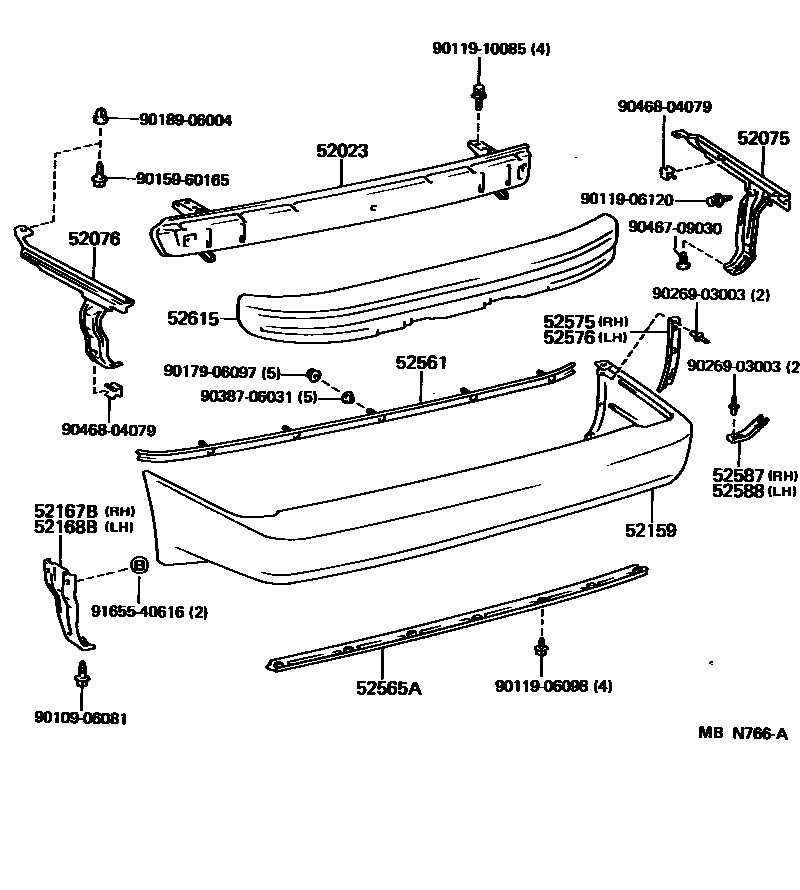

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-14140iMA70198808-199305

52075RETAINER SUB-ASSY, REAR BUMPER SIDE, RH

main52075-14020iMA70198808-199305

52076RETAINER SUB-ASSY, REAR BUMPER SIDE, LH

main52076-14020iMA70198808-199305

52159COVER, REAR BUMPER

main52159-14904iMA70198808-199305

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-14100iMA70198808-199305

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-14040iMA70198808-199305

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-14140iMA70198808-199305

52565ARETAINER, REAR BUMPER, LOWER

main52565-14051iMA70198808-199305

52575RETAINER, REAR BUMPER SIDE, RH

main52575-14030iMA70198808-199305

52576RETAINER, REAR BUMPER SIDE, LH

main52576-14030iMA70198808-199305

52587RETAINER, REAR BUMPER END, RH

main52587-14020iMA70198808-199305

52588RETAINER, REAR BUMPER END, LH

main52588-14020iMA70198808-199305

52615ABSORBER, REAR BUMPER ENERGY

main52615-14150iMA70198808-199305

9010906081

main90109-06081

9011906098

main90119-06098

9011906120

main90119-06120

9011910085

main90119-10085

9015960165

main90159-60165

9017906097

main90179-06097

9018906004

main90189-06004

9026903003

main90269-03003

9038706031

main90387-06031

9046709030

main90467-09030

9046804079

main90468-04079

9165540616

main91655-40616

25 parts on this diagram · 1 diagram in section
