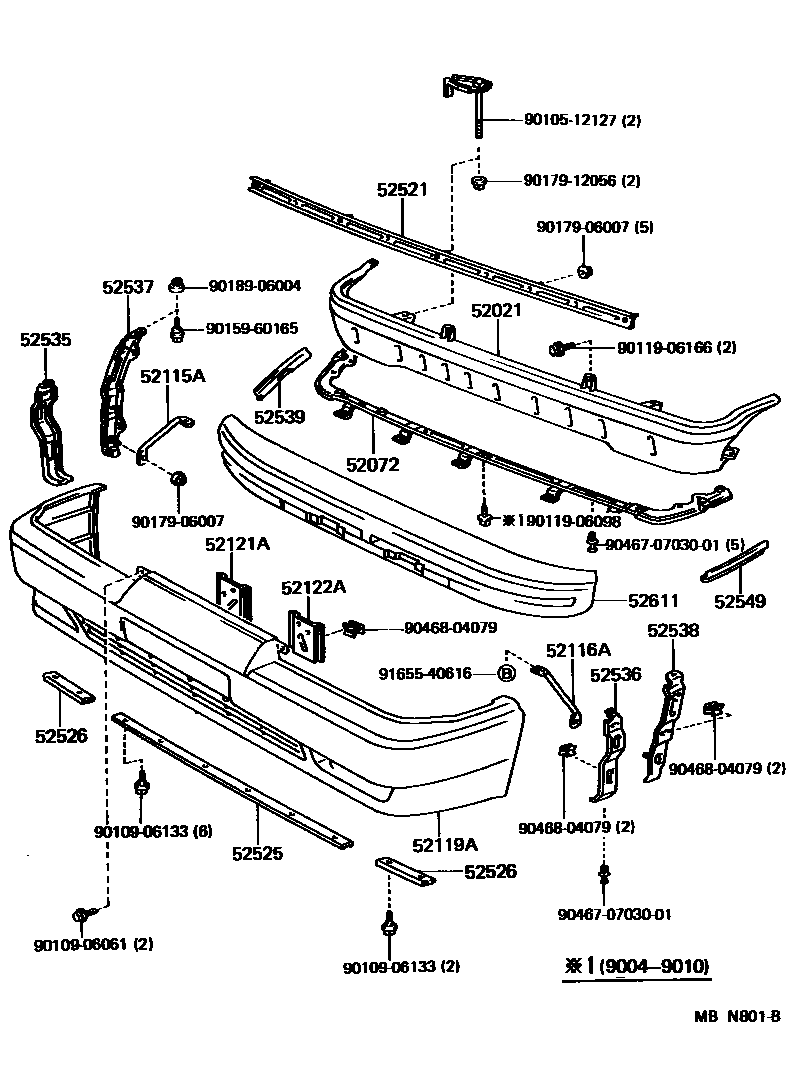

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-14160iMA70198808-198908

main52021-14161iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198908-199305

52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER

main52072-14050iMA70198808-199004

sub52072-14051

main52072-14051iMA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA199004-199305

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-14110iMA70198808-199305

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-14110iMA70198808-199305

52119ACOVER, FRONT BUMPER

main52119-14910iMA70198808-199305

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-14090iMA70198808-199305

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-14010iMA70198808-199305

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-14080iMA70198808-199305

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-14090iMA70198808-199305

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-14080iMA70198808-199305

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-14060iMA70198808-199305

52536RETAINER, FRONT BUMPER SIDE, LH

main52535-14060iMA70198808-199305

52537RETAINER, FRONT BUMPER END, RH

main52537-14040iMA70198808-199305

52538RETAINER, FRONT BUMPER END, LH

main52538-14040iMA70198808-199305

52539RETAINER, FRONT BUMPER SIDE, NO.3 RH

main52539-14010iMA70198808-199305

52549RETAINER, FRONT BUMPER SIDE, NO.3 LH

main52539-14010iMA70198808-199305

52611ABSORBER, FRONT BUMPER ENERGY

main52611-14100iMA70198808-199305

9010512127

main90105-12127

9010906061

main90109-06061

9010906133

main90109-06133

9011906098

main90119-06098

9011906166

main90119-06166

9015960165

main90159-60165

9017906007

main90179-06007

9017912056

main90179-12056

9018906004

main90189-06004

904670703001

main90467-0703001

9046804079

main90468-04079

9165540616

main91655-40616

29 parts on this diagram · 1 diagram in section
