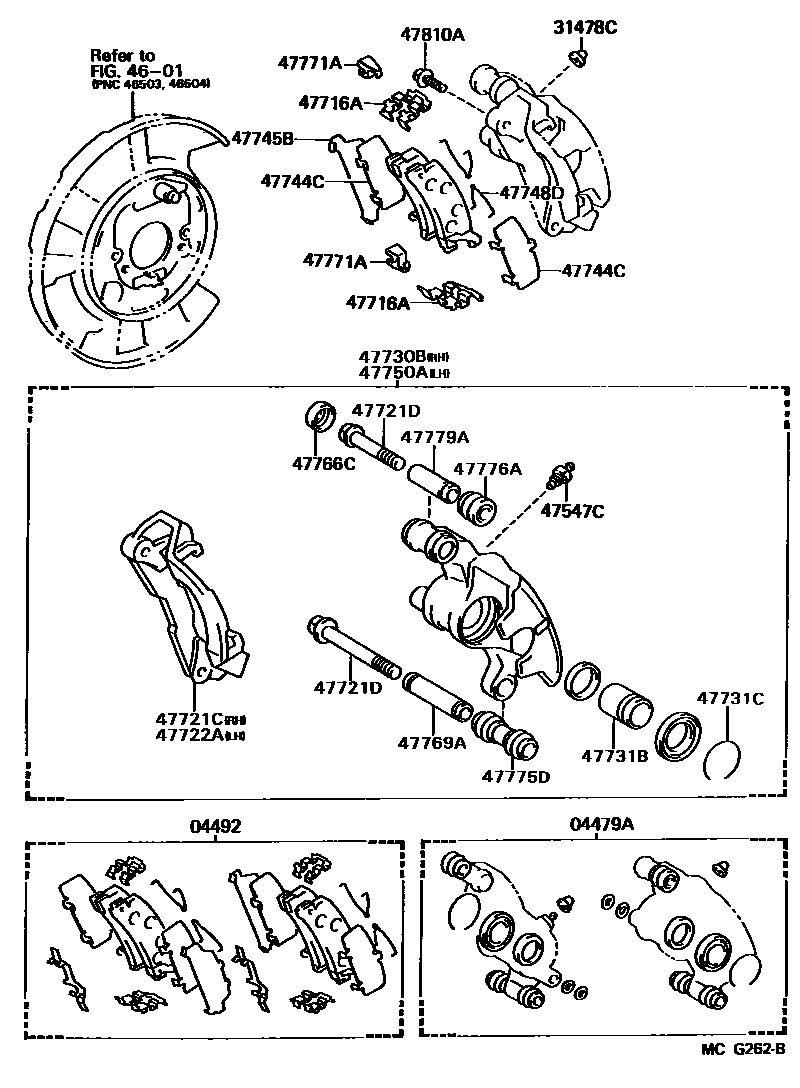

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-14110iMA70¥2,400198808-199305

04492PAD KIT, DISC BRAKE, REAR

main04492-14100iMA70¥10,200198808-199008

sub04466-22110¥9,600

main04492-14120iMA70¥11,100199008-199305

sub04466-14010¥9,600

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMA70¥160198808-199305

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iMA70¥200198808-199305

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-14140iMA70¥390198808-199305

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-14130iMA70¥10,500198808-199008

main47721-14160iMA70¥10,200199008-199305

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08117iMA70¥190198808-199305

*8-1.25PX65-15

main90119-08431iMA70¥220198808-199305

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-14130iMA70¥10,500198808-199008

main47721-14160iMA70¥10,200199008-199305

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-14190iMA70¥48,100198808-199008

main47730-14230iMA70¥41,600199008-199305

47731BPISTON, REAR DISC BRAKE

main47731-14100iMA70¥1,840198808-199305

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-49001iMA70¥180198808-199305

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-22091iMA70¥270198808-199305

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-22051iMA70¥270198808-199305

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-14070iMA70¥300198808-199305

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-14210iMA70¥48,100198808-199008

main47750-14240iMA70¥41,600199008-199305

47766CCAP, CYLINDER SLIDE PIN

main47766-17010iMA70198808-199305

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iMA70¥680198808-199305

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-22040iMA70¥260198808-199305

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iMA70¥780198808-199305

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-14030iMA70¥400198808-199305

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-14010iMA70¥870198808-199305

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10402iMA70¥200198808-199305

23 parts on this diagram · 2 diagrams in section
