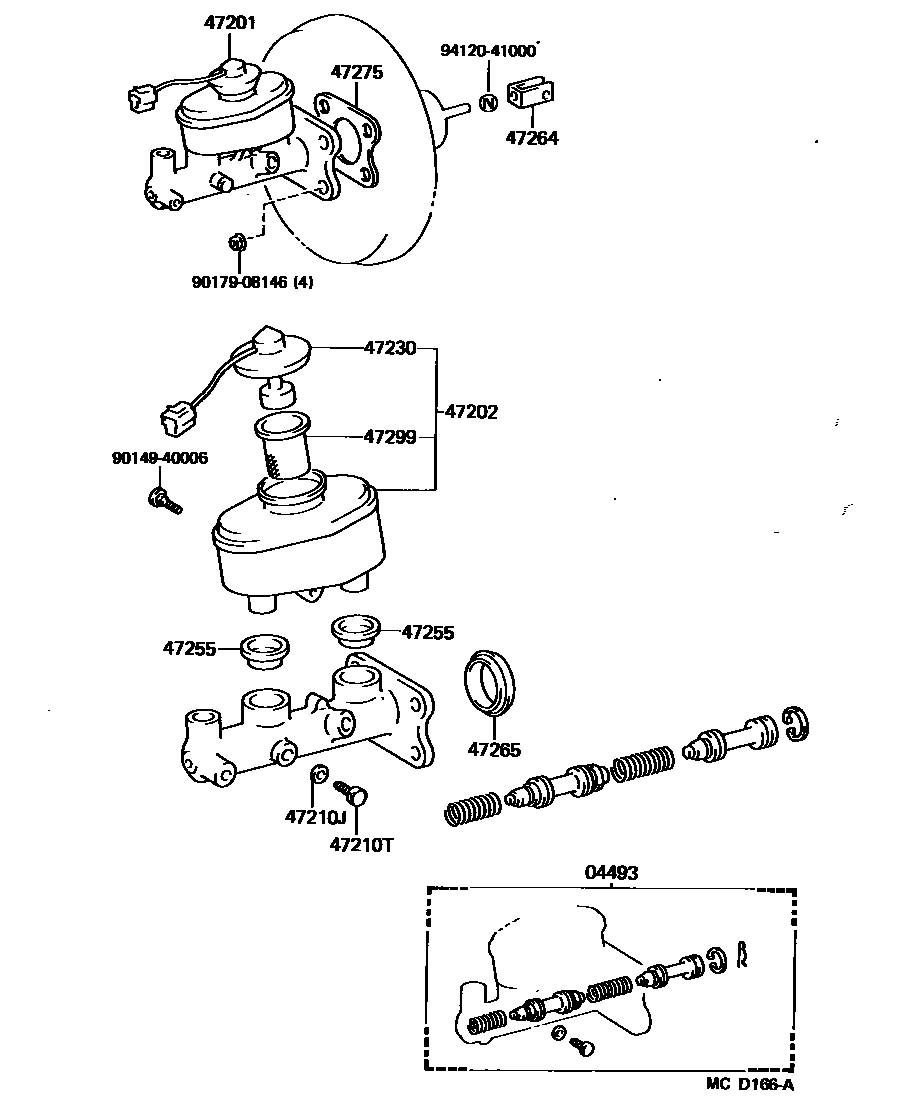

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-14120iMA70198808-199008

main04493-14131iMA70198808-199008

W(*66)

main04493-14140iMA70199008-199305

W(*66)

main04493-24030iMA70199008-199305

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-14560iMA70198808-199008

sub47201-14730

main47201-14610iMA70198808-199008

W(*66)

main47201-14640iMA70199008-199305

W(*66)

main47201-14730iMA70199008-199305

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-14300iMA70198808-199305

main47202-14380iMA70199008-199305

W(*66)

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMA70198808-199305

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iMA70198808-199305

main90109-06077iMA70199008-199305

W(*66)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-14070iMA70198808-199305

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-10010iMA70198808-199305

main47255-16010iMA70199008-199305

W(*66)

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-30040iMA70198808-199008

main47264-50010iMA70199008-199305

47265BOOT, MASTER CYLINDER

main47265-20050iMA70198808-199305

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iMA70198808-199305

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iMA70198808-199305

9014940006

main90149-40006

9017908146

main90179-08146

9412041000

main94120-41000

14 parts on this diagram · 1 diagram in section
