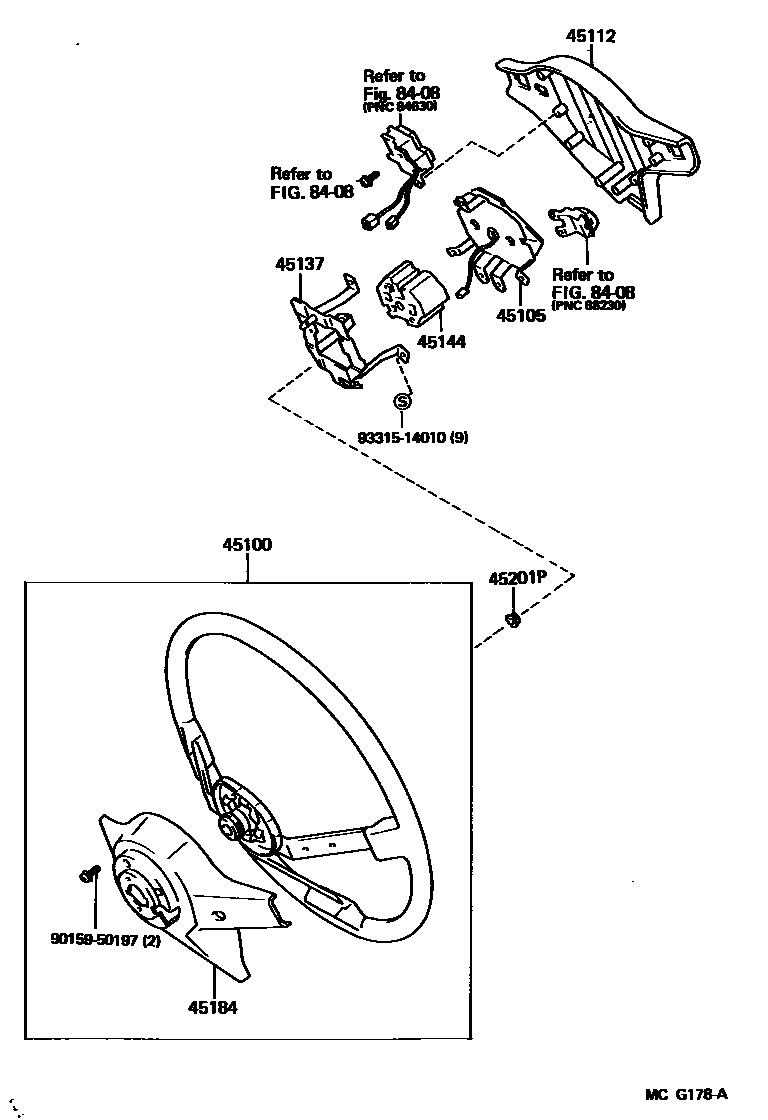

STEERING WHEEL

0001 1 0003 1

45100WHEEL ASSY, STEERING

main45100-14470iMA70..TWC..CND;MA70..SPR..TWT..CND198808-199108

main45100-14510iMA70..USA198908-199008

sub45100-14511

main45100-14511iMA70..USA199008-199305

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-14110iMA70..CND198808-199108

45112PAD, STEERING WHEEL

main45112-14170iMA70198808-199108

sub45112-14180

45137PLATE, HORN BUTTON STOP

main45106-14020iMA70198808-199108

45144PAD, ENERGY ABSORBING

main45144-14010iMA70198808-199108

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-14130iMA70198808-199108

45201PNUT, STEERING WHEEL SET

main90179-12086iMA70198808-199305

8408

9015950197

main90159-50197

9331514010

main93315-14010

10 parts on this diagram · 2 diagrams in section
