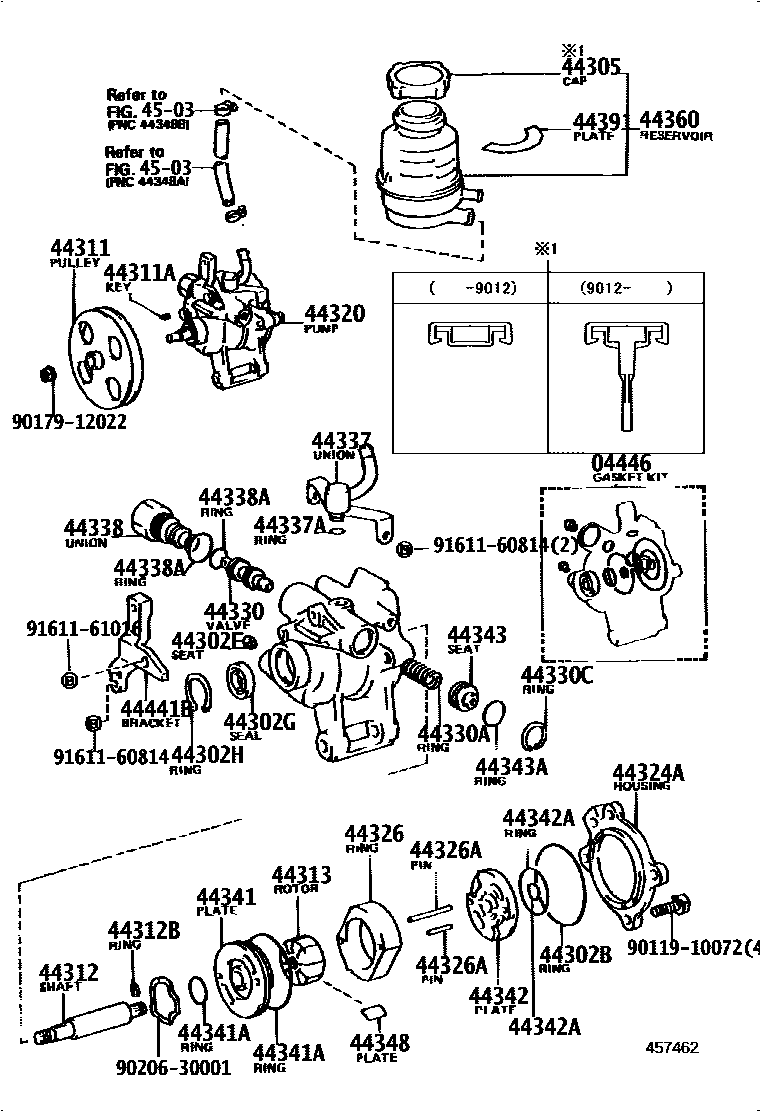

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302FSEAT, UNION(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44311AKEY, VANE PUMP PULLEY
44312SHAFT, VANE PUMP
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
NO MARK,W(*73)
MARK 1
MARK 1,W(*73)
MARK 2
MARK 2,W(*73)
MARK 3
MARK 3,W(*73)
MARK 4
MARK 4,W(*73)
44320PUMP ASSY, VANE
W(*73)
44324AHOUSING, PUMP, REAR
44326RING, CAM(FOR VANE PUMP)
NO MARK
NO MARK,W(*73)
MARK 1
MARK 1,W(*73)
MARK 2,W(*73)
MARK 2
MARK 3
MARK 3,W(*73)
MARK 4
MARK 4,W(*73)
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=25,OD=5.0
L=43.5,OD=5.0
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44330CRING, SNAP(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338UNION, PRESSURE PORT
W(*73)
44338ARING, O(FOR PRESSURE PORT UNION)
OD=25.5,ID=22.5
OD=17.0,ID=13.0
44341PLATE, VANE PUMP SIDE, FRONT
44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)
INNER
OUTER
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
INNER
OUTER
44343SEAT, FLOW CONTROL SPRING
44343ARING, O(FOR FLOW CONTROL SPRING SEAT)
44348PLATE, VANE PUMP
L=14.997,L=14.996-14.998
L=14.995,L=14.994-14.996
L=14.993,L=14.992-14.994
L=14.991,L=14.990-14.992
L=14.989,L=14.988-14.990
44360RESERVOIR ASSY, VANE PUMP OIL
44391PLATE, POWER STEERING OIL RESERVOIR CAUTION
44441BBRACKET, PUMP, FRONT
4503
9011910072
main90119-10072
9017912022
main90179-12022
9020630001
main90206-30001
9161160814
main91611-60814
9161161016
main91611-61016
38 parts on this diagram · 2 diagrams in section
