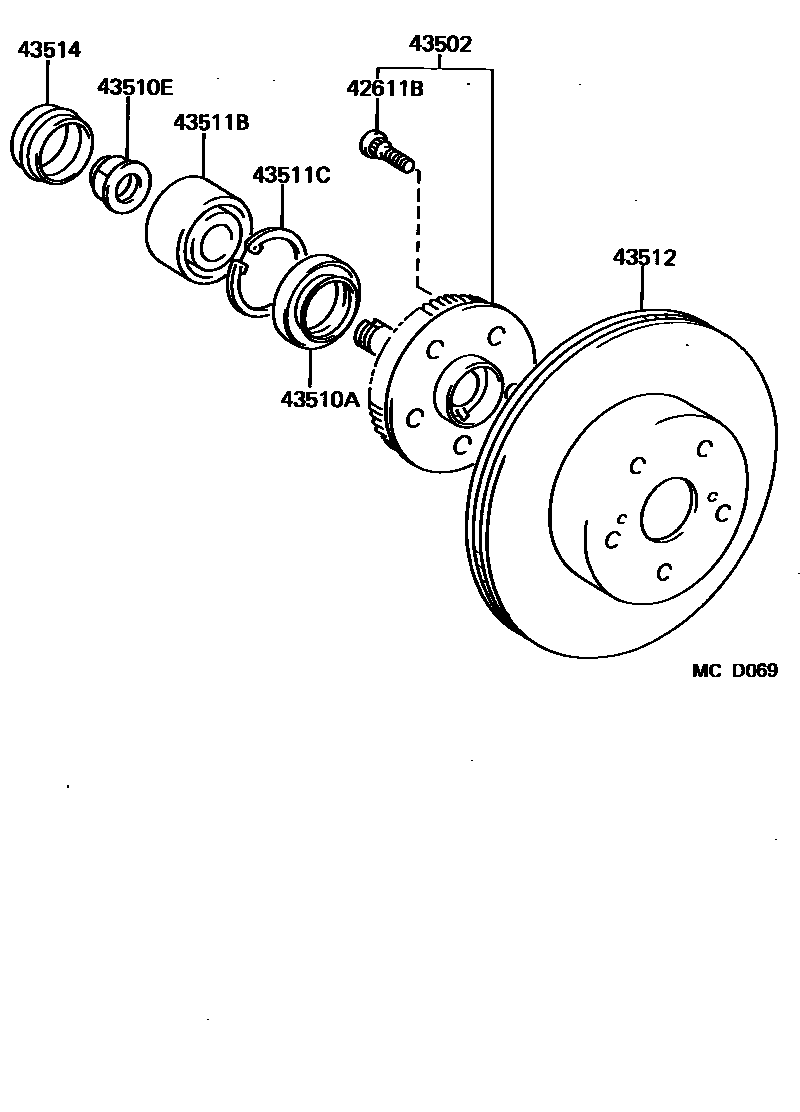

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iMA70198808-199305

43502HUB SUB-ASSY, FRONT AXLE

main43502-14040iMA70198808-199305

main43503-14020iMA70198808-199305

W(*66)

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50008iMA70198808-199305

43510ENUT (FOR STEERING KNUCKLE)

main90179-24005iMA70198808-199305

43511BBEARING (FOR FRONT AXLE HUB)

main90369-35034iMA70198808-199305

sub90903-63006

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82001iMA70198808-199305

T=2.5

43512DISC, FRONT

main43512-14120iMA70198808-199305

43514CAP, FRONT HUB GREASE

main43514-14020iMA70198808-199305

8 parts on this diagram · 1 diagram in section
