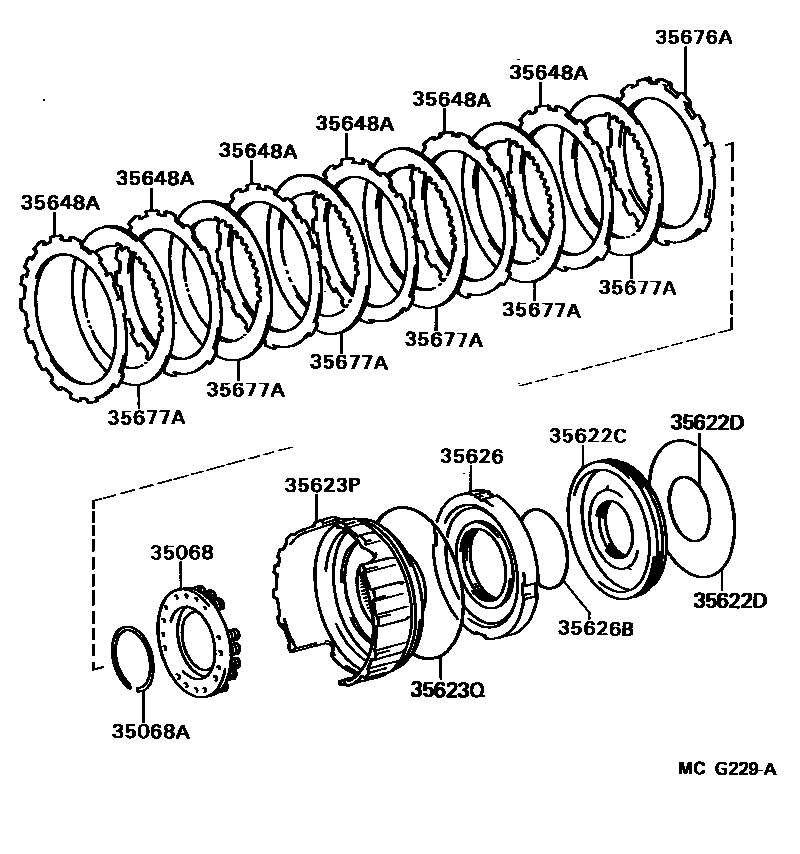

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-30011iMA70..4FC¥1,860198808-199305

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-52262iMA70..4FC¥240198808-199305

35622CPISTON, 1ST & REVERSE BRAKE, NO.1

main35622-30010iMA70..4FC¥2,500198808-199305

35622DRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.1)

main90301-57188iMA70..4FC¥630198808-199305

INNER

main90301-99193iMA70..4FC¥800198808-199305

OUTER

35623PPISTON, 1ST & REVERSE BRAKE, NO.2

main35623-14010iMA70..4FC..TWT¥6,400198808-198908

main35623-14011iMA70..4FC..TWT¥3,560198908-199305

main35623-30010iMA70..4FC..TWC¥6,800198808-198809

main35623-30011iMA70..4FC..TWC¥5,500198809-198908

main35623-30012iMA70..4FC..TWC¥3,590198908-199305

35623QRING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2)

main90301-99192iMA70..4FC¥800198808-199305

35626SLEEVE, BRAKE REACTION

main35626-30020iMA70..4FC¥3,150198808-199305

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iMA70..4FC¥630198808-199305

sub90301-67005¥190

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-30031iMA70..4FC..TWT¥1,430198808-199305

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-30030iMA70..4FC¥4,030198808-198908

T=4.0

sub35676-50060¥2,560

main35676-50010iMA70..4FC¥3,050198908-199305

T=5.0

main35676-50020iMA70..4FC¥2,780198908-199305

T=4.8

main35676-50030iMA70..4FC¥2,780198908-199305

T=4.6

main35676-50040iMA70..4FC¥2,780198908-199305

T=4.4

main35676-50050iMA70..4FC¥2,560198908-199305

T=4.2

main35676-50060iMA70..4FC¥2,560198908-199305

T=4.0

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-30110iMA70..4FC..TWC¥2,140198808-199305

sub35677-30130¥2,660

11 parts on this diagram · 1 diagram in section
