EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24021iMA70..4FC¥28,000198808-199305

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iMA70..4FC¥400198808-199305

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMA70..4FC¥1,680198808-199305

sub33146-30020¥990

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMA70..4FC¥780198808-199108

sub35182-28010¥520

main35182-28010iMA70..4FC..TWC¥520199008-199305

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iMA70..4FC¥500198808-199305

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iMA70..4FC¥460198808-199305

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

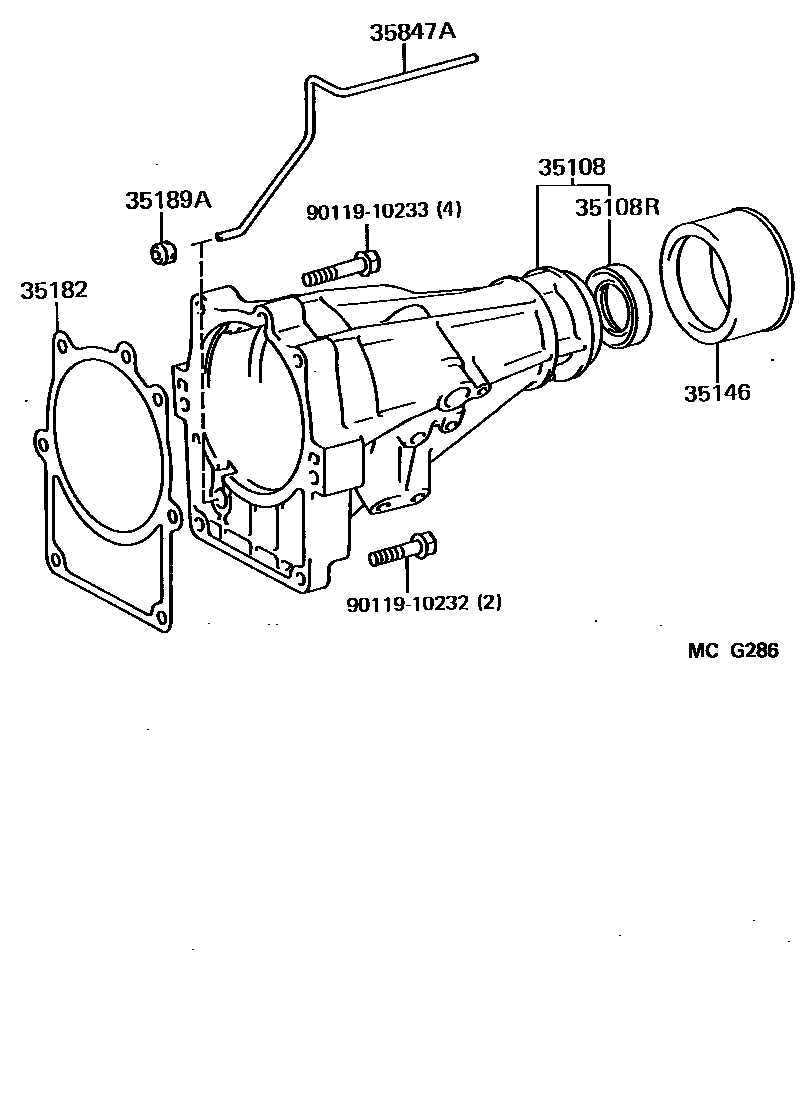

8 parts on this diagram · 1 diagram in section
