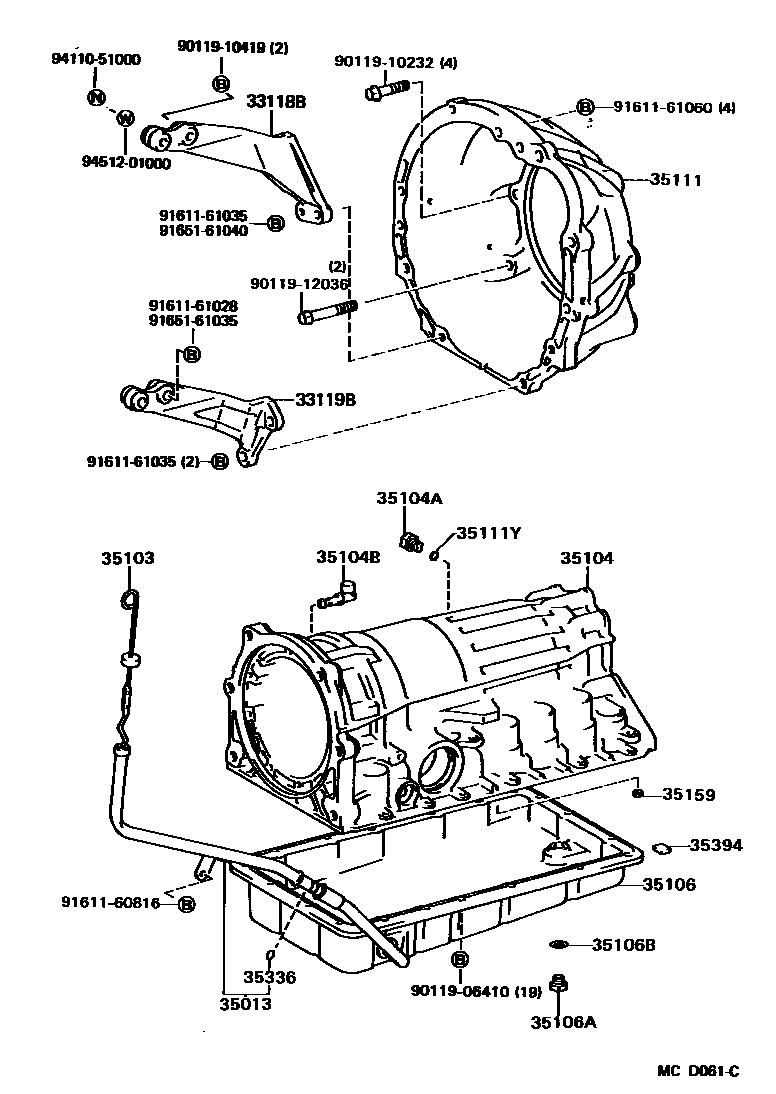

TRANSMISSION CASE & OIL PAN (ATM)

33118BPLATE, STIFFENER, RH(ATM)

main33118-14050iMA70..4FC198808-198812

main33118-14051iMA70..4FC198812-199305

33119BPLATE, STIFFENER, LH(ATM)

main33119-22030iMA70..4FC198808-199305

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-30230iMA70..4FC198808-199305

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-30270iMA70..4FC198808-199305

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-30133iMA70..4FC198808-199305

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iMA70..4FC198808-199305

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03108iMA70..4FC198808-199305

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30100iMA70..4FC198808-198908

sub35106-30101

main35106-30101iMA70..4FC198908-199305

sub35106-30170

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iMA70..4FC198808-199305

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iMA70..4FC198808-199305

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-24021iMA70..4FC198808-199305

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iMA70..4FC198808-199305

35159GASKET, BRAKE DRUM

main35159-30010iMA70..4FC198808-199305

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMA70..4FC198808-199305

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iMA70..4FC..TWT198808-199305

W(ESC)

9011906410

main90119-06410

9011910232

main90119-10232

9011910419

main90119-10419

9011912036

main90119-12036

9161160816

main91611-60816

9161161028

main91611-61028

9161161035

main91611-61035

9161161060

main91611-61060

9165161035

main91651-61035

9165161040

main91651-61040

9411051000

main94110-51000

9451201000

main94512-01000

27 parts on this diagram · 1 diagram in section
