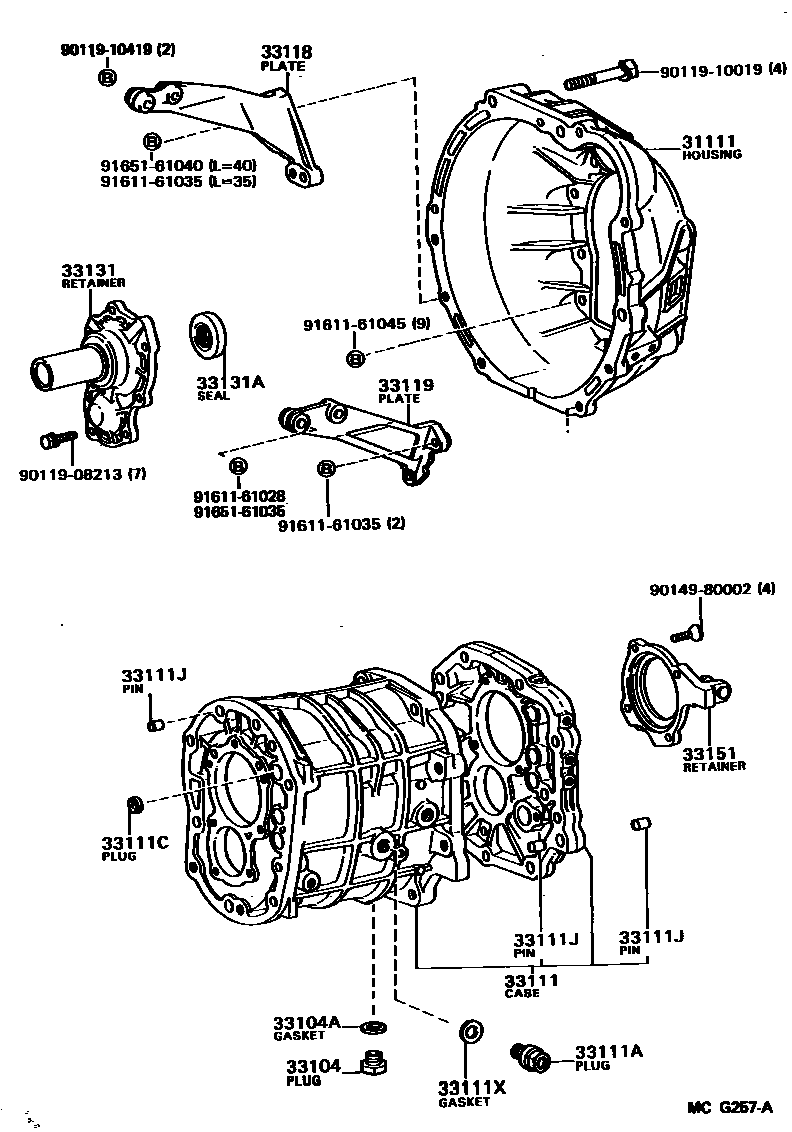

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1W5# 0002 1W5# 0003 1R154

31111HOUSING, CLUTCH

main31111-14100iMA70..5F..TWT198808-199305

main31111-22091iMA70..5F..TWC198808-199305

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

main90341-18057iMA70..5F..TWC198808-199305

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iMA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

33111CASE, MANUAL TRANSMISSION

main33101-22031iMA70..5F..TWC198808-198904

sub33101-22032

main33101-22032iMA70..5F..TWC198904-199108

sub33101-30070

sub33242-30080

main33101-30070iMA70..5F..TWC199108-199305

main33101-35030iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199108

sub33101-35031

sub90341-16014

main33101-35031iMA70..5F..TWT199108-199305

sub33101-60030

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iMA70..5F..TWC198808-199305

main90341-18026iMA70..5F..TWT198808-199305

sub90341-18019

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iMA70..5F..TWT198808-199305

OD=14

main90331-14004iMA70..5F..TWC199108-199110

OD=14,OD=14

main90331-17004iMA70..5F..TWC199108-199110

OD=17,OD=17

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iMA70..5F..TWT198808-199305

L=16,OD=12

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iMA70..5F..TWC198808-199305

33118PLATE, STIFFENER, RH(MTM)

main33118-14051iMA70..5F198811-199305

33119PLATE, STIFFENER, LH(MTM)

main33119-14070iMA70..5F..TWT198808-199305

main33119-22030iMA70..5F..TWC198808-199305

33131RETAINER, BEARING, FRONT(MTM)

main33131-22021iMA70..5F..TWC198808-199110

main33131-30080iMA70..5F..TWC199110-199305

main33131-35030iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199008

sub33131-35031

main33131-35031iMA70..5F..TWT199008-199305

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iMA70..5F..TWC199110-199305

main90311-30115iMA70..5F..TWC198808-199110

main90311-32012iMA70..5F..TWT198808-199305

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iMA70..5F..TWC198808-199110

main33151-35020iMA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

9011908213

main90119-08213

9011910019

main90119-10019

9011910419

main90119-10419

9014980002

main90149-80002

9161161028

main91611-61028

9161161035

main91611-61035

9161161045

main91611-61045

9165161035

main91651-61035

9165161040

main91651-61040

22 parts on this diagram · 3 diagrams in section
