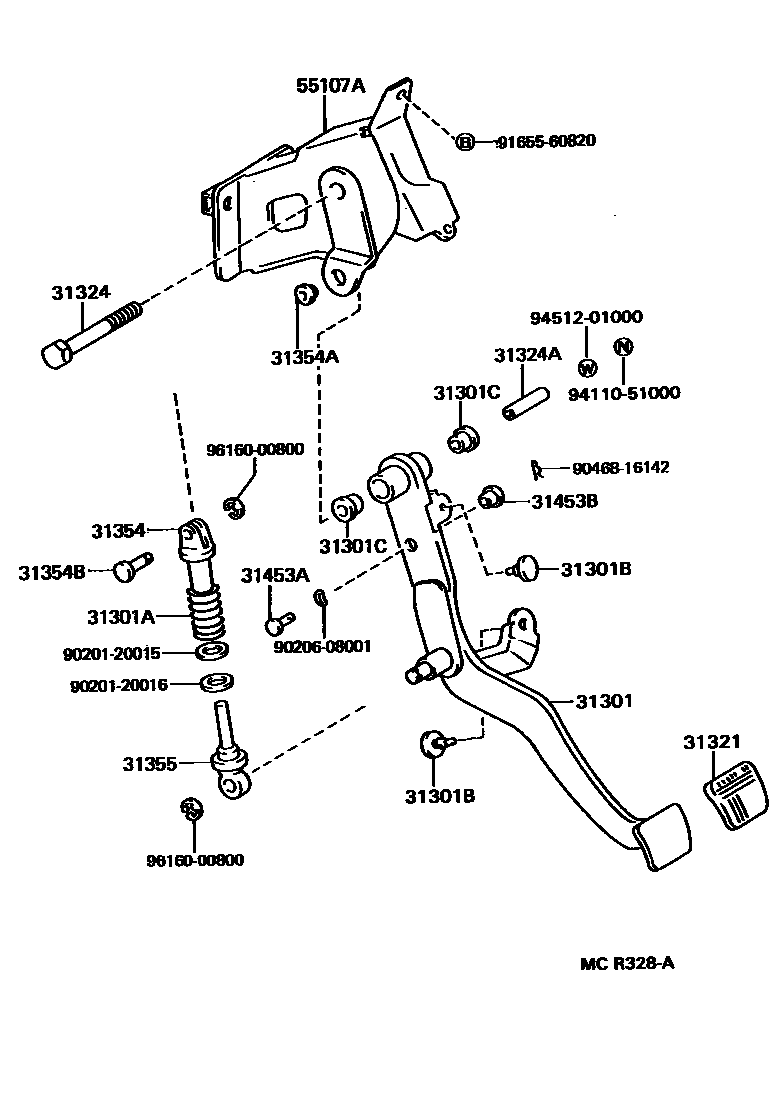

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-14030iMA70..5F198808-199305

31301ASPRING(FOR CLUTCH PEDAL)

main90501-40011iMA70..5F..TWT198808-199305

main90501-45029iMA70..5F..TWC198808-199305

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-07020iMA70..5F198808-199305

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iMA70..5F198808-199305

31321PAD, CLUTCH PEDAL

main31321-14020iMA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

31324SHAFT, CLUTCH PEDAL

main91121-51060iMA70..5F198808-199305

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iMA70..5F198808-199305

31354SEAT, CLUTCH PEDAL SPRING, UPPER

main31354-20020iMA70..5F198808-199305

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-10019iMA70..5F198808-199305

31354BPIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90249-10127iMA70..5F198808-199305

31355SEAT, CLUTCH PEDAL SPRING, LOWER

main31355-14020iMA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iMA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA198808-199305

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08010iMA70..5F198808-199305

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-14150iMA70..5F198808-199305

9020120015

main90201-20015

9020120016

main90201-20016

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

9616000800

main96160-00800

22 parts on this diagram · 2 diagrams in section
