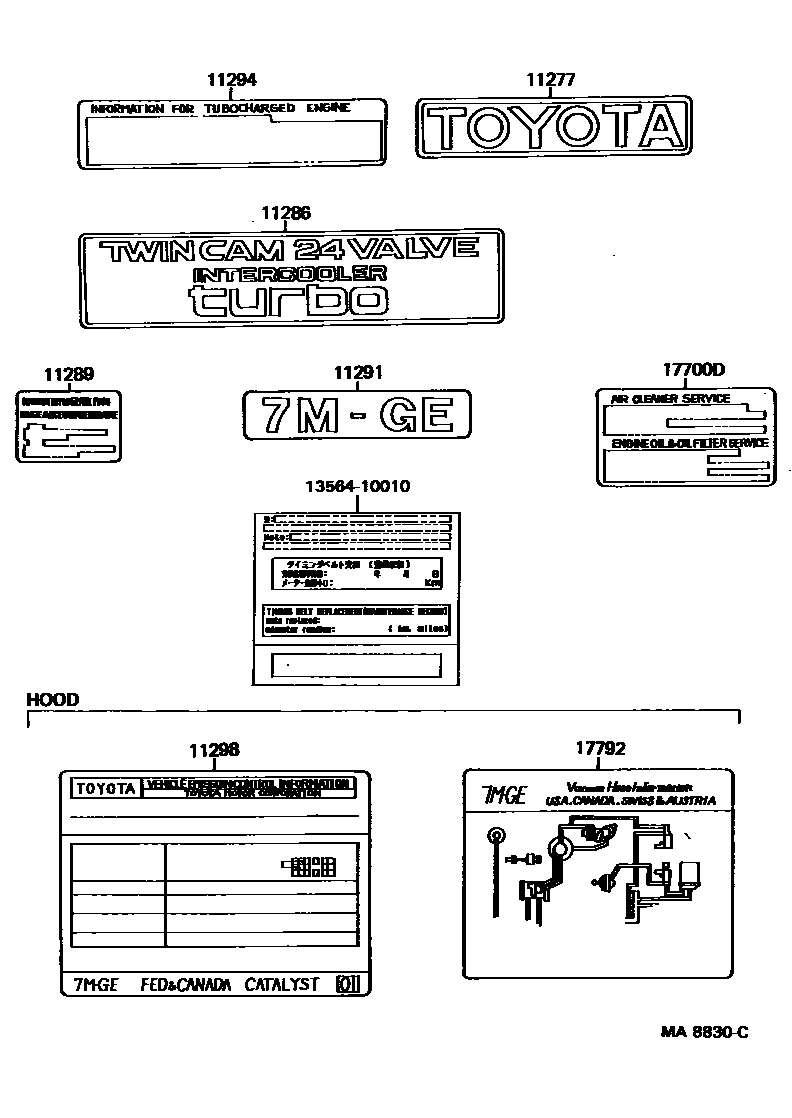

CAUTION PLATE & NAME PLATE (ENGINE)

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-42010i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

11286PLATE, ENGINE SPECIFICATION

main11286-42010i7MGTE..MA70198808-198908

11289PLATE, SPARK PLUG CAUTION

main11289-73020i7MG#..MA70198808-198908

11291PLATE, ENGINE NAME

main11291-42020i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

main11291-42030i7MGE..MA70198808-199305

11294PLATE, ENGINE CAUTION, NO.2

main11294-42010i7MGTE..MA70..USA198808-199305

main11294-42020i7MGTE..MA70..SPR..CND198908-199008

11298PLATE, EMISSION CONTROL INFORMATION

main11298-42120i7MGTE..MA70..USA198808-198908

CALIFORNIA SPEC

main11298-42130i7MGTE..MA70198808-198908

main11298-42140i7MGE..MA70198808-198908

main11298-42150i7MGE..MA70..USA198808-198908

CALIFORNIA SPEC

main11298-42230i7MGE..MA70198908-199008

main11298-42240i7MGE..MA70..USA198908-199008

CALIFORNIA SPEC

main11298-42270i7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008

main11298-42280i7MGTE..MA70..USA198908-199008

CALIFORNIA SPEC

main11298-42290i7MGTE..MA70199008-199108

main11298-42300i7MGTE..MA70..USA199008-199108

CALIFORNIA SPEC

main11298-42310i7MGE..MA70199008-199108

main11298-42320i7MGE..MA70199008-199108

CALIFORNIA SPEC

main11298-42370i7MGE..MA70199108-199305

main11298-42380i7MGE..MA70199108-199305

CALIFORNIA SPEC

main11298-42390i7MGTE..MA70199108-199305

main11298-42400i7MGTE..MA70..USA199108-199305

CALIFORNIA SPEC

17700DPLATE, ENGINE CAUTION

main11293-74070i7MGE..MA70198808-198908

main17791-35010i7MGTE..MA70198808-198908

main17791-62010i7MGE..MA70198908-199305

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-42040i7MGTE..MA70198808-198908

main17792-42041i7MGTE..MA70199008-199305

main17792-42070i7MGE..MA70198808-199008

main17792-42071i7MGE..MA70199008-199305

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

9 parts on this diagram · 1 diagram in section
