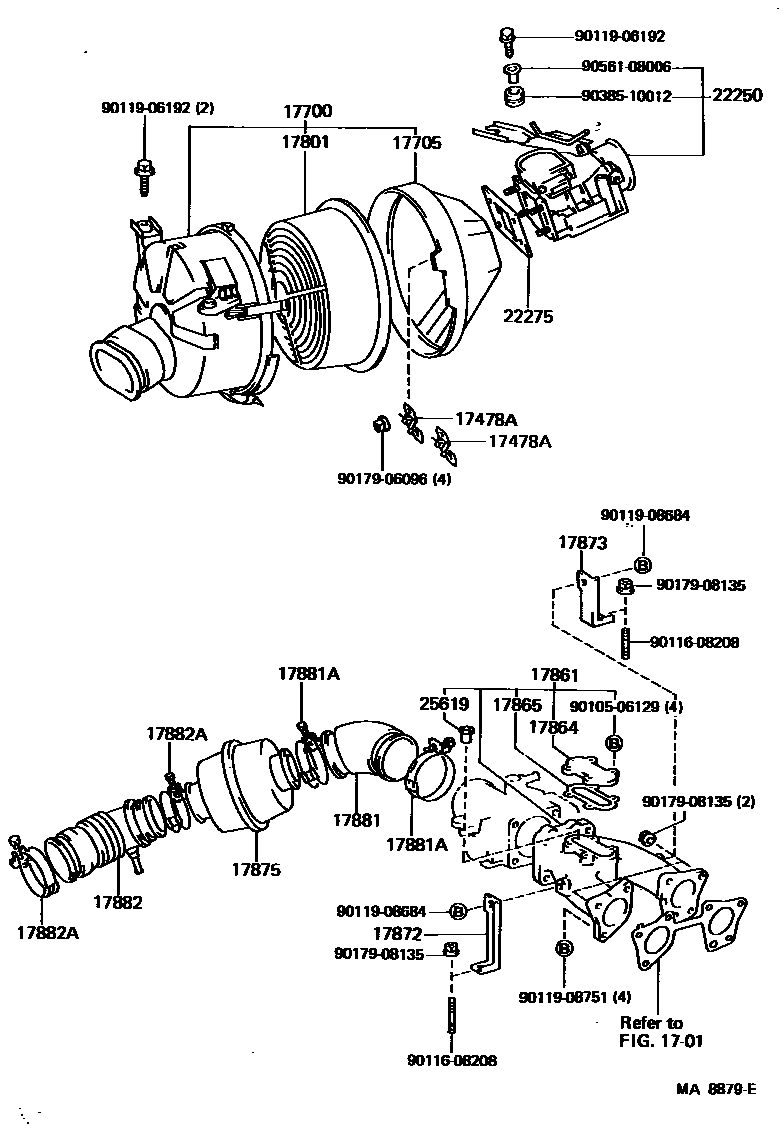

AIR CLEANER
1701
17478APLATE, LOCK
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17861CONNECTOR, INTAKE AIR
17864COVER, INTAKE AIR CONNECTOR
17872BRACKET, INTAKE AIR CONNECTOR
17873BRACKET, INTAKE AIR CONNECTOR, NO.2
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
THROTTLE BODY SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
PIPE SIDE
AIR FLOW METER SIDE
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
25619TUBE, EGR INLET
9010506129
main90105-06129
9011608208
main90116-08208
9011906192
main90119-06192
9011908684
main90119-08684
9011908751
main90119-08751
9017906096
main90179-06096
9017908135
main90179-08135
9038510012
main90385-10012
9056108006
main90561-08006
27 parts on this diagram · 2 diagrams in section
