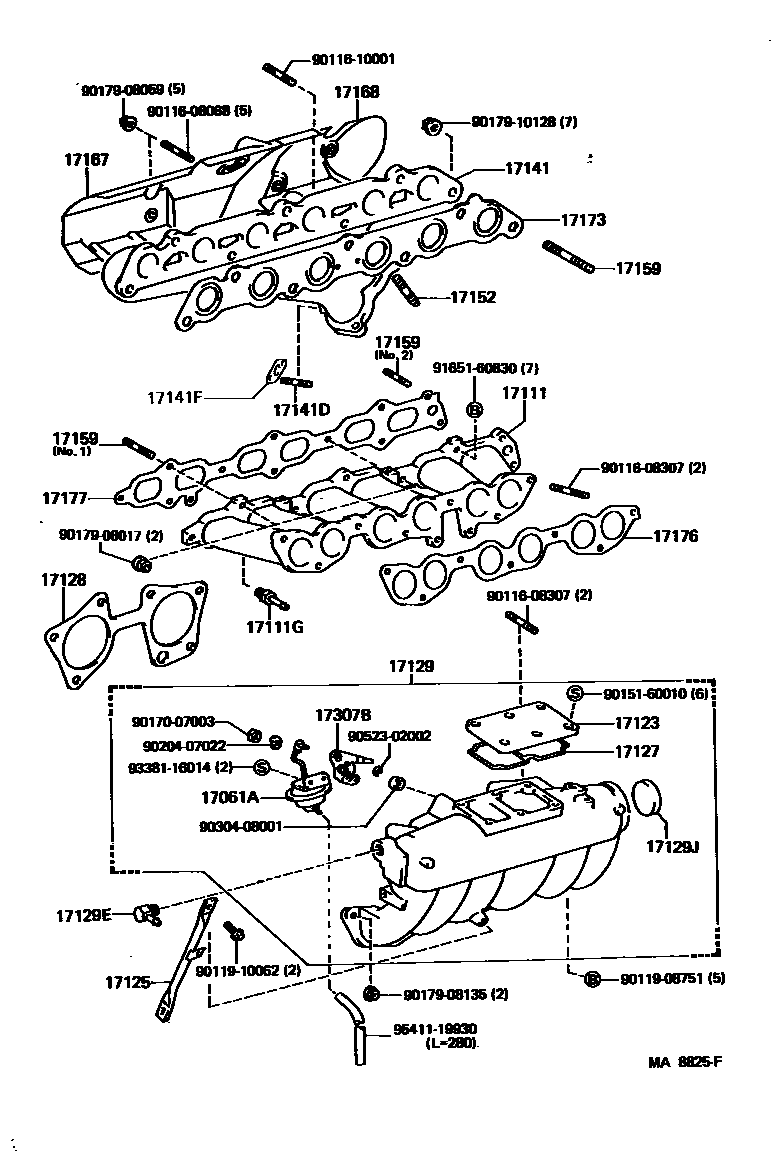

MANIFOLD
17061ADIAPHRAGM SUB-ASSY
17111MANIFOLD, INTAKE
17111GUNION(FOR INTAKE MANIFOLD WATER)
17123COVER, SURGE TANK
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17129TANK, INTAKE AIR SURGE
17129EUNION, NO.3
main90404-54033i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199011
sub90404-54039
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
OD=40,FR
OD=50,RR
17141MANIFOLD, EXHAUST
CALIFORNIA SPEC
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17141FGASKET(FOR EXHAUST MANIFOLD PLATE)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
main90116-08178i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198808-199305
INTAKE MANIFOLD,NO.2
INTAKE MANIFOLD,NO.1
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
CALIFORNIA SPEC
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
sub17176-42020
main17176-42020i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-42020
main17177-42020i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198912-199305
17307BLEVER SUB-ASSY, INTAKE AIR CONTROL
9011608068
main90116-08068
9011608307
main90116-08307
9011610001
main90116-10001
9011908751
main90119-08751
9011910062
main90119-10062
9015160010
main90151-60010
9017007003
main90170-07003
9017908017
main90179-08017
9017908059
main90179-08059
9017908135
main90179-08135
9017910128
main90179-10128
9020407022
main90204-07022
9030408001
main90304-08001
9052302002
main90523-02002
9165160830
main91651-60830
9338116014
main93381-16014
9541119930
main95411-19930
38 parts on this diagram · 3 diagrams in section
