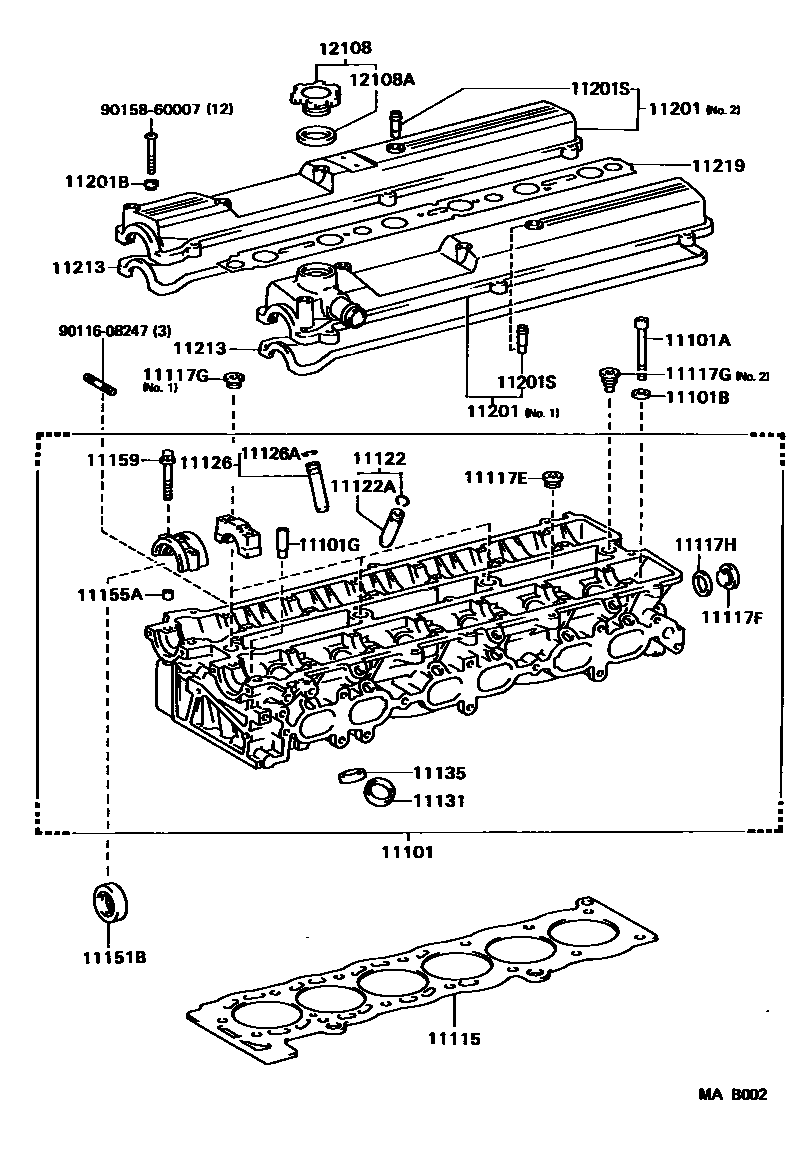

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101GUNION(FOR CYLINDER HEAD)
11115GASKET, CYLINDER HEAD
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117GPLUG, W/HEAD STRAIGHT SCREW, NO.3
main90341-24007i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
NO.2
main90341-24008×3i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
NO.1
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
main90520-10004×12i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
11126BUSH, EXHAUST VALVE GUIDE
STD
main11123-16020×12i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
main90520-10004×12i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
11131SEAT, INTAKE VALVE
main11131-42010×12i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
main11136-42010×12i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
O/S 0.03
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
11155APIN, RING W/HEAD
main90253-11021×28i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
NO.1
NO.1
NO.2
NO.2
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201STUBE, AIR
11213GASKET, CYLINDER HEAD COVER
main11213-42020×2i7MGE..MA70;7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA198908-199008
11219COVER, CYLINDER HEAD, NO.3
12108CAP SUB-ASSY, OIL FILLER
sub12180-55010
12108AGASKET(FOR OIL FILLER CAP)
9011608247
main90116-08247
9015860007
main90158-60007
27 parts on this diagram · 1 diagram in section
