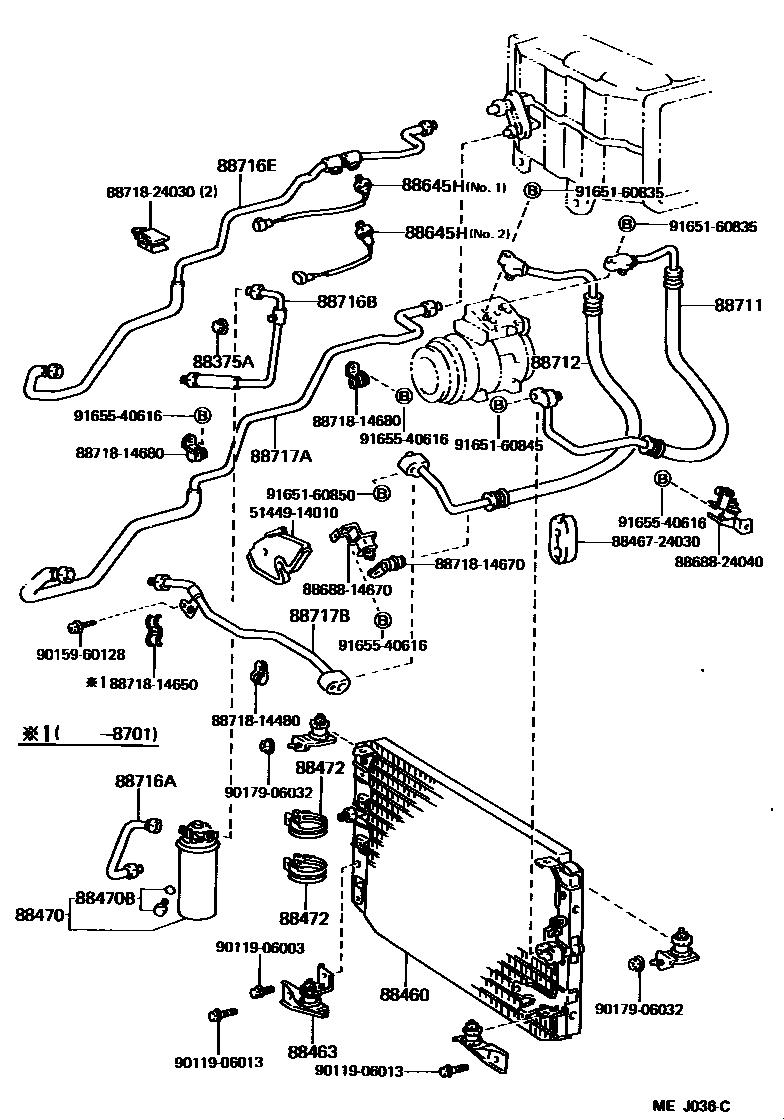

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-20010iMA70198703-198808

main88375-30270iMA70198601-198703

88460CONDENSER ASSY, COOLER

main88460-14250iMA70198601-198701

main88460-14251iMA70198701-198709

main88460-14252iMA70198709-198808

88463BRACKET, COOLER CONDENSER, NO.1

main88463-14070iMA70198709-198801

main88463-24040iMA70198601-198709

main88463-24050iMA70198801-198808

88470RECEIVER & DRYER ASSY, COOLER

main88471-95401iMA70198601-198808

88470BBOLT, FUSE

main88475-12020iMA70198601-198808

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iMA70198601-198808

88645HSWITCH, PRESSURE NO.1

main88645-10020iMA70198601-198808

NO.2

main88645-14010iMA70198608-198808

NO.1

sub88645-24050

main88645-24011iMA70198601-198608

NO.1

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-24070iMA70198601-198808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-1B090iMA70198601-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-1B120iMA70198701-198703

sub88716-1B121

main88716-1B121iMA70198703-198808

main88716-24080iMA70198601-198701

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-1B070iMA70198601-198701

main88716-1B071iMA70198701-198709

main88716-1B073iMA70198709-198808

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-1B080iMA70..TWC198601-198608

main88716-1B110iMA70198608-198701

main88716-1B111iMA70198701-198709

main88716-1B112iMA70198709-198808

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-14290iMA70..TWC198601-198608

sub88707-14010

main88717-14310iMA70198608-198701

main88717-14311iMA70198701-198709

main88717-14312iMA70198709-198808

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-14280iMA70198601-198701

main88717-14281iMA70198701-198709

main88717-14282iMA70198709-198808

5144914010COVER, FRONT FRAME UNDER, LH

main51449-14010

8846724030CUSHION, COOLER CONDENSER, NO.1

main88467-24030

8868814670BRACKET, COOLER DIAPHRAGM

main88688-14670

8868824040BRACKET, COOLER DIAPHRAGM

main88688-24040

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871814650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14650

8871814670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14670

8871814680PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14680

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

9011906003

main90119-06003

9011906013

main90119-06013

9015960128

main90159-60128

9017906032

main90179-06032

9165160835

main91651-60835

9165160845

main91651-60845

9165160850

main91651-60850

9165540616

main91655-40616

31 parts on this diagram · 2 diagrams in section
