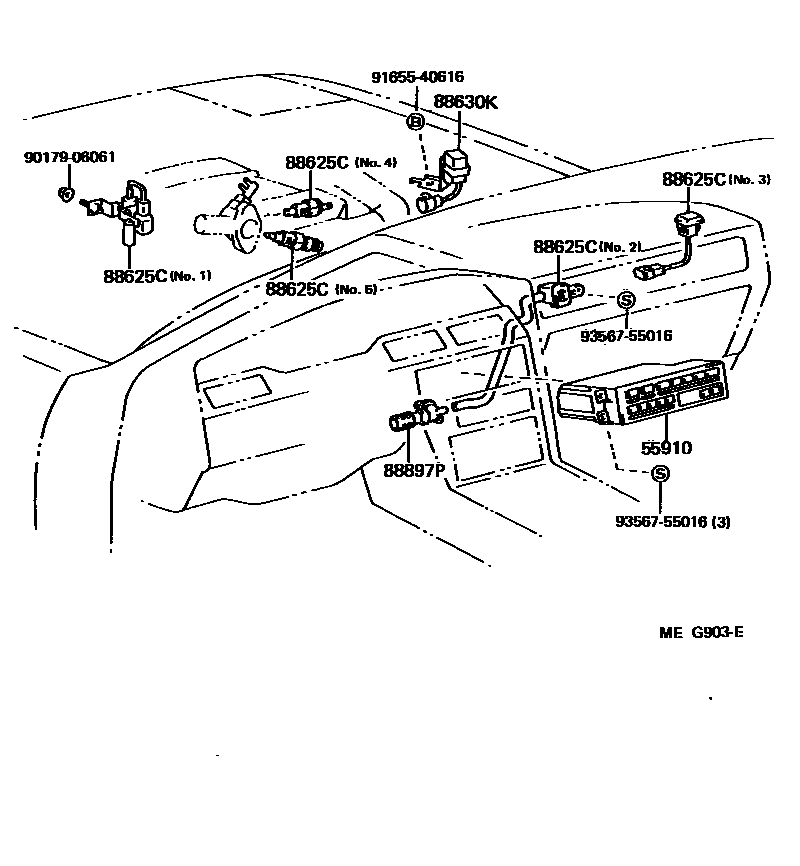

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-14410iMA70..USA198601-198708

main55900-14411iMA70..USA198708-198808

main55900-14420iMA70..CND198601-198708

main55900-14421iMA70..CND198708-198808

88625CTHERMISTOR, COOLER

main88625-20140iMA70198601-198808

NO.3

main88790-14100iMA70198601-198808

NO.2

main88790-24070iMA70198601-198808

NO.1

main88790-24090iMA70..TWT198701-198808

NO.5

main88790-24110iMA70..TWT198701-198808

NO.4

88630KRELAY ASSY

main88630-14070iMA70..TWT198701-198808

main88630-14080iMA70..TWT198708-198808

88897PASPIRATOR

main88897-14010iMA70198601-198808

9017906061

main90179-06061

9165540616

main91655-40616

9356755016

main93567-55016

7 parts on this diagram · 2 diagrams in section
