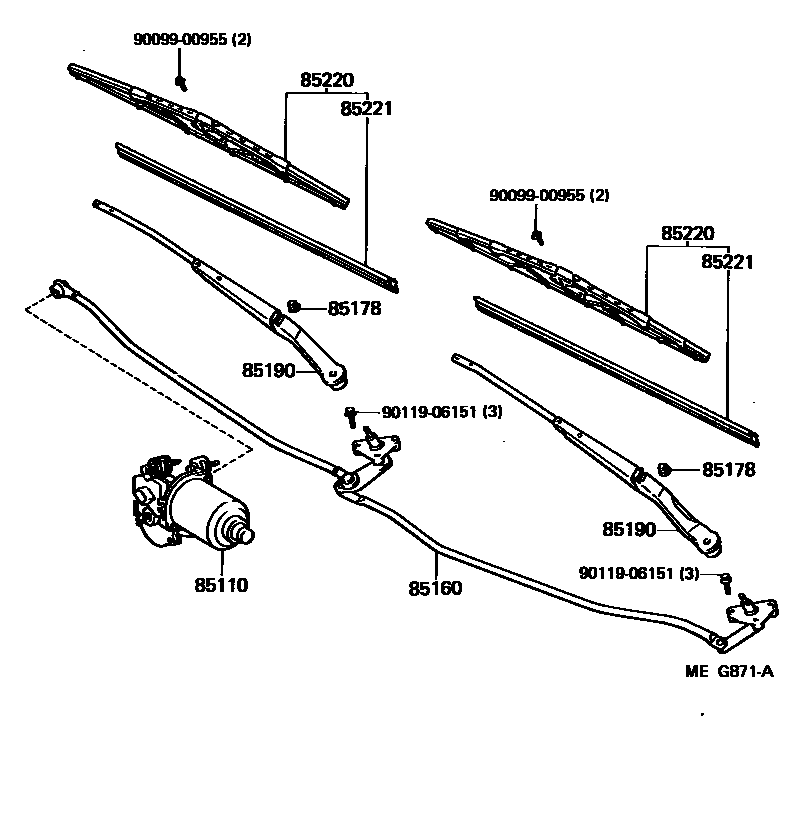

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-14230iMA70198601-198803

main85110-14231iMA70198803-198808

sub85110-14232

85160LINK ASSY, WINDSHIELD WIPER

main85160-14330iMA70198601-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iMA70198601-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-14630iMA70198601-198808

LH

main85210-14250iMA70198601-198808

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16540iMA70198601-198808

RH

main85220-32490iMA70198601-198612

LH

sub85220-32860

main85220-32600iMA70198612-198808

LH

sub85220-32860

85221BLADE, WINDSHIELD WIPER

main85221-14230iMA70198601-198612

LH

main85221-14250iMA70198601-198612

RH

main85221-14280iMA70198612-198808

RH

sub85221-14270

main85221-32050iMA70198612-198808

LH

sub85214-24H90

9009900955

main90099-00955

9011906151

main90119-06151

8 parts on this diagram · 1 diagram in section
