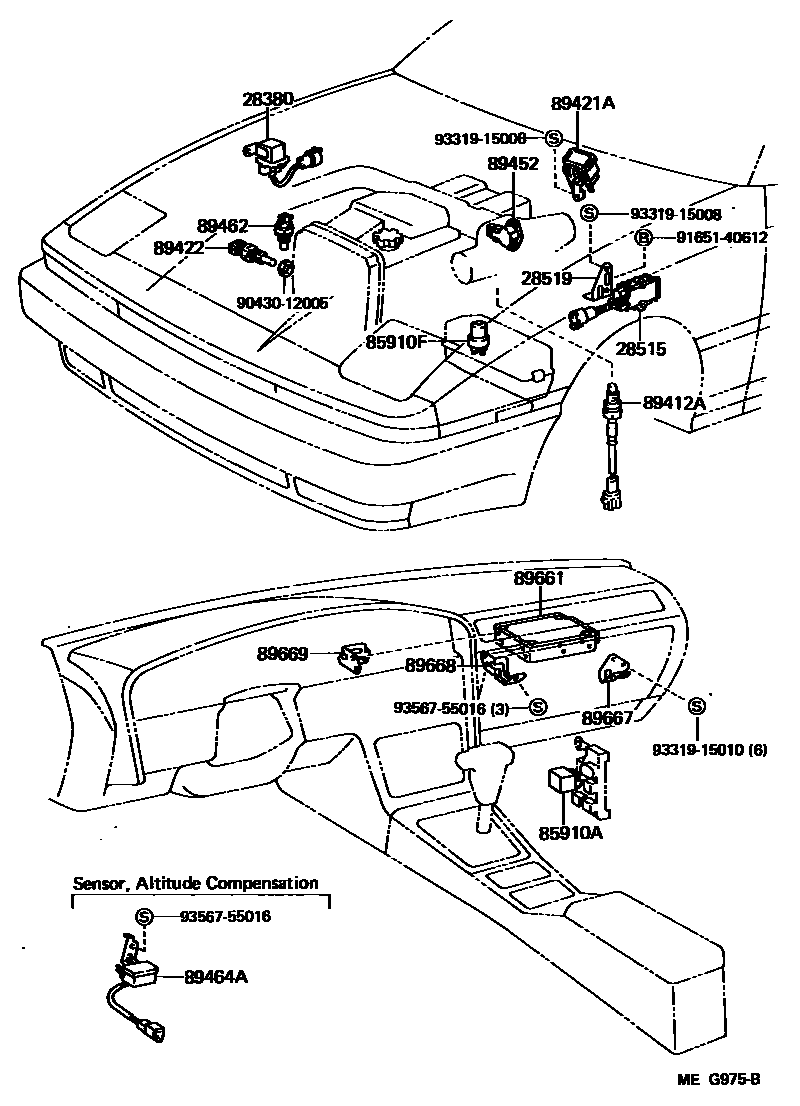

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89412ASENSOR, E.G.R GAS TEMPERATURE
CALIFORNIA SPEC
89421ASENSOR, TURBO PRESSURE
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
sub89422-12010
89462SWITCH, START INJECTOR TIME
89464ASENSOR, ALTITUDE COMPENSATION
89661COMPUTER, ENGINE CONTROL
sub89661-14091
sub89661-14092
sub89661-14101
sub89661-14131
sub89661-14141
CALIFORNIA SPEC
CALIFORNIA SPEC
89667BRACKET, ENGINE CONTROL COMPUTER
CALIFORNIA SPEC
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9043012005
main90430-12005
9165140612
main91651-40612
9331915008
main93319-15008
9331915010
main93319-15010
9356755016
main93567-55016
20 parts on this diagram · 1 diagram in section
