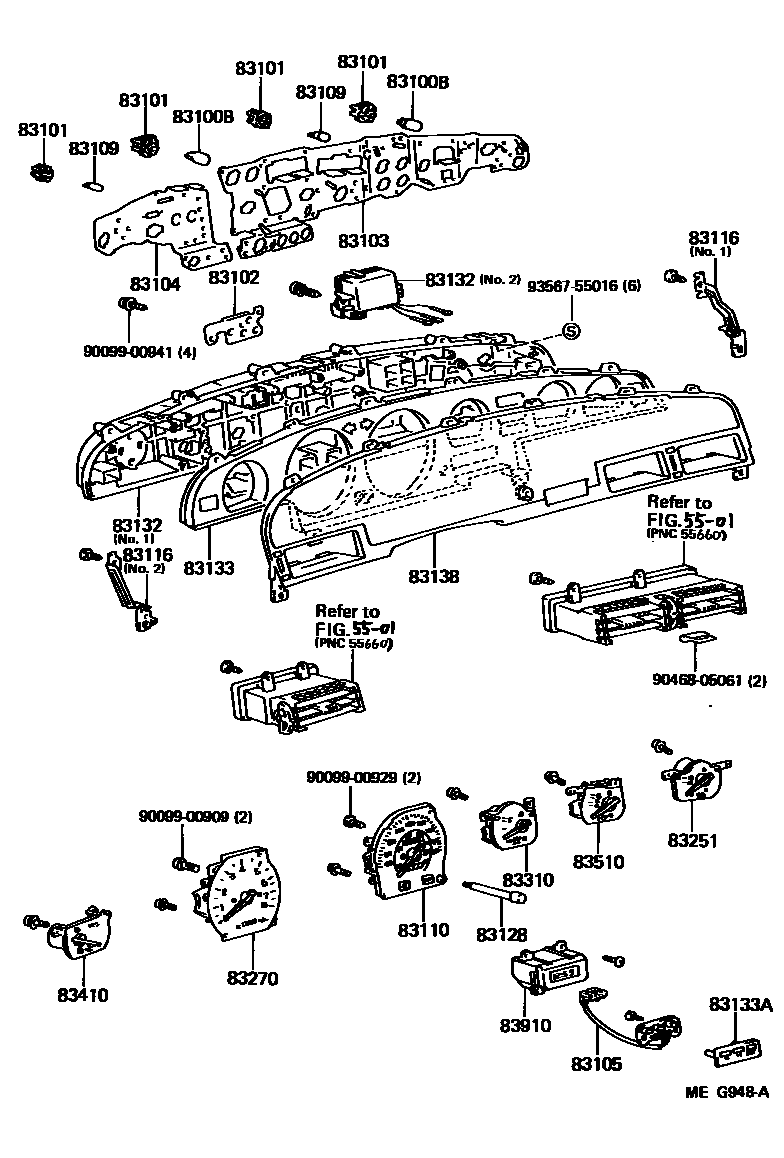

METER
5501
83100BBULB, COMBINATION METER, NO.1
12V 1.2W W/O SOCKET,12V 1.4W
12V 3.4W,12V 3.4W
83101SOCKET SUB-ASSY, COMBINATION METER BULB
12V 3.4W
12V 1.4W
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
W/TEMS
83104PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.3
83105PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.4
W/SUPER MONITOR
W/SUPER MONITOR
83109BULB, COMBINATION METER, NO.2
12V 1.4W,GREEN CAP,12V 1.4W,W/GREEN CAP
12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP
83128KNOB, TRIP COUNTER
83132CASE, COMBINATION METER
NO.1
NO.1
NO.2
83133PLATE, COMBINATION METER, NO.1
W/TEMS
W/TEMS
83133APLATE, COMBINATION METER, NO.2
W/SUPER MONITOR
83138GLASS, SPEEDOMETER
83251METER, VOLTAGE
83270TACHOMETER ASSY, ENGINE
83310GAGE ASSY, FUEL RECEIVER
83410GAGE ASSY, WATER TEMPERATURE RECEIVER
83510GAGE ASSY, OIL PRESSURE RECEIVER
83910CLOCK ASSY
9009900909
main90099-00909
9009900929
main90099-00929
9009900941
main90099-00941
9046805061
main90468-05061
9356755016
main93567-55016
26 parts on this diagram · 3 diagrams in section
