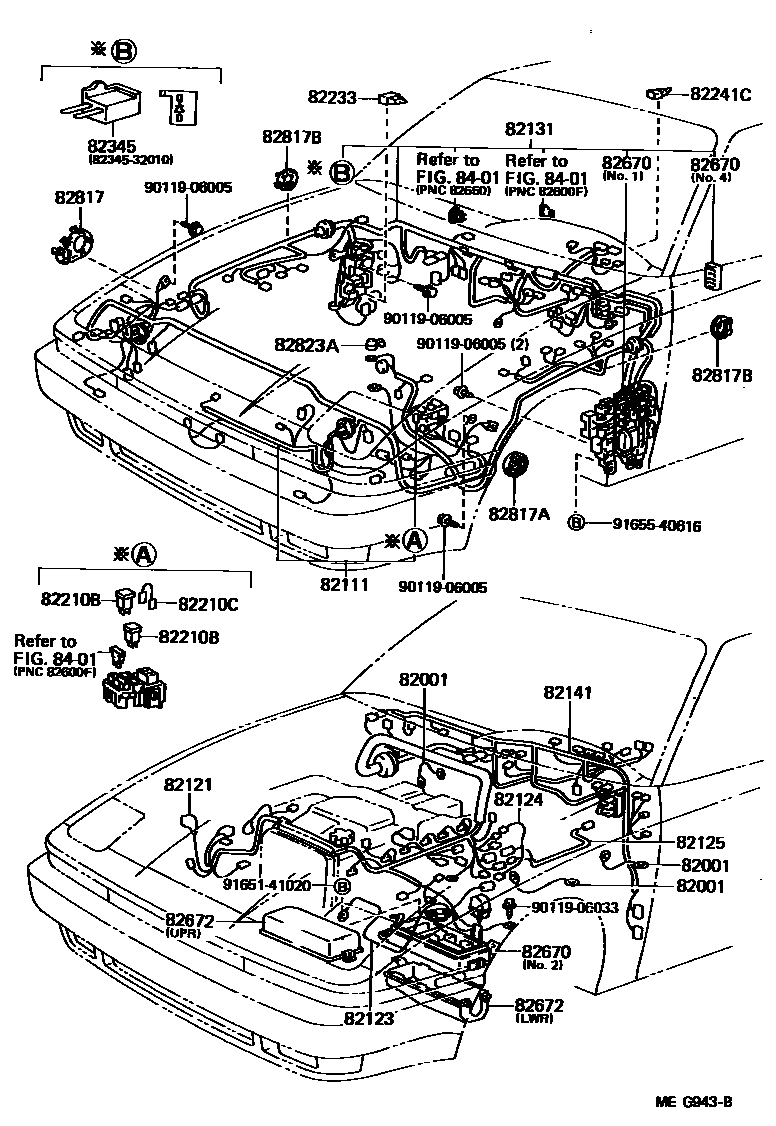

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=300,CLUTCH HOUSING--FLOOR
L=350,ENGINE--COWL PANEL
L=290,EXTENSION HOUSING--FLOOR
L=350,ENGINE--COWL PANEL
82111WIRE, ENGINE ROOM MAIN
W/TEMS,W/*HC,W/TEMS & *HC
W/TEMS,W/*HC,W/TEMS & *HC
W/TEMS,W/*HC,W/TEMS & *HC
W/ESC
W/ESC,W/TEMS & ESC,W/ESC & *HC
W/ESC,W/TEMS & ESC,W/ESC & *HC
W/ESC
W/ESC,W/TEMS & ESC,W/ESC & *HC
W/ESC
W/ESC
82123WIRE, ENGINE, NO.3
82124WIRE, ENGINE, NO.4
82125WIRE, TRANSMISSION
CALIFORNIA SPEC
82131WIRE, COWL
W/ESC OR SUPER MONITER
W/ESC,W/TEMS & SUPER MONITOR
W/ESC OR SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/ESC OR SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/TEMS
W/TEMS
W/TEMS
W/TEMS
W/TEMS
W/TEMS
W/ESC OR SUPER MONITOR
W/ESC,W/TEMS & SUPER MONITOR
W/TEMS
W/TEMS
CALIFORNIA SPEC
CALIFORNIA SPEC
82210BFUSIBLE LINK
30A,TERM.:FEMALE,PNK,30A
40A,TERM.:FEMALE,GRN,40A
60A,TERM.:FEMALE,YEL,60A
82210CFUSIBLE LINK
100A,TERM.:MALE,BLUE
WIRE TYPE,1.25B,1.25 BLACK
82233WIRE, COMPUTER
82241CWIRE, RELAY
82345DIODE
82670BLOCK ASSY, JUNCTION, NO.1
NO.1
NO.1
NO.4
NO.2
82672COVER, JUNKTION BLOCK
UPR
UPR
UPR
UPR
UPR
LWR
82817PROTECTOR, WIRING HARNESS, NO.1
82817APROTECTOR, WIRING HARNESS, NO.2
82817BPROTECTOR, WIRING HARNESS, NO.3
82823ACAP, TERMINAL, NO.2
8401
8234532010DIODE
main82345-32010
9011906005
main90119-06005
9011906033
main90119-06033
9165141020
main91651-41020
9165540616
main91655-40616
25 parts on this diagram · 5 diagrams in section
