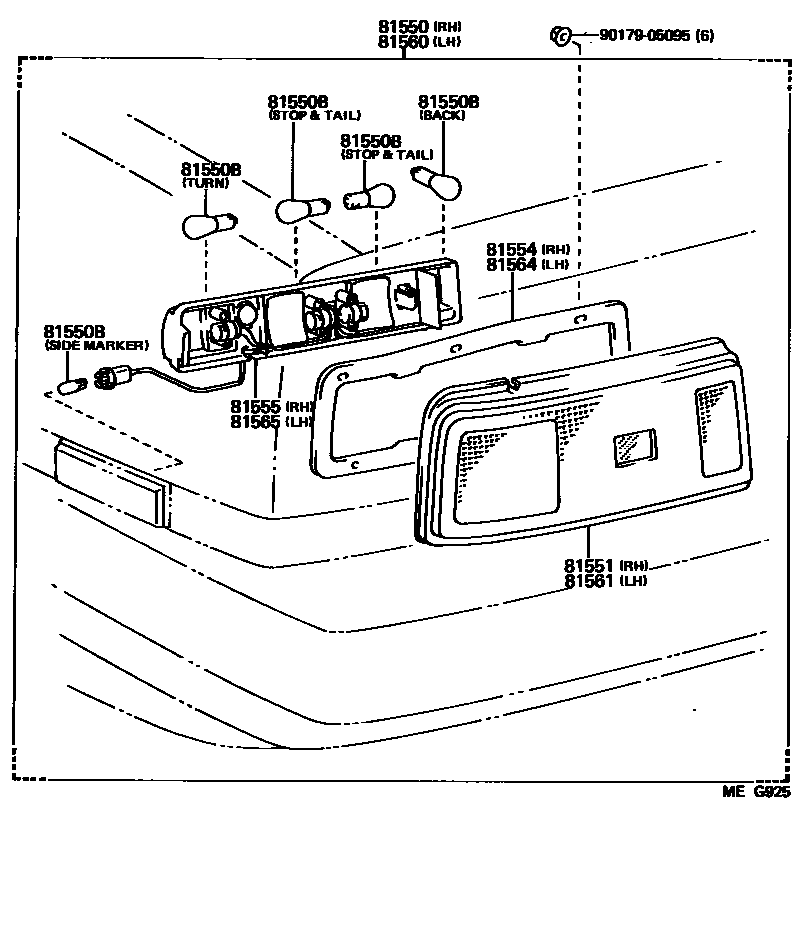

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 3.8W,12V 3.8W(SIDE MARKER)
12V 27W,12V 27W(TURN OR BACK)
12V 27/8W,12V 27/8W(STOP/TAIL)
81551LENS, REAR COMBINATION LAMP, RH
sub81551-14641
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
sub81561-14641
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905095
main90179-05095
10 parts on this diagram · 1 diagram in section
