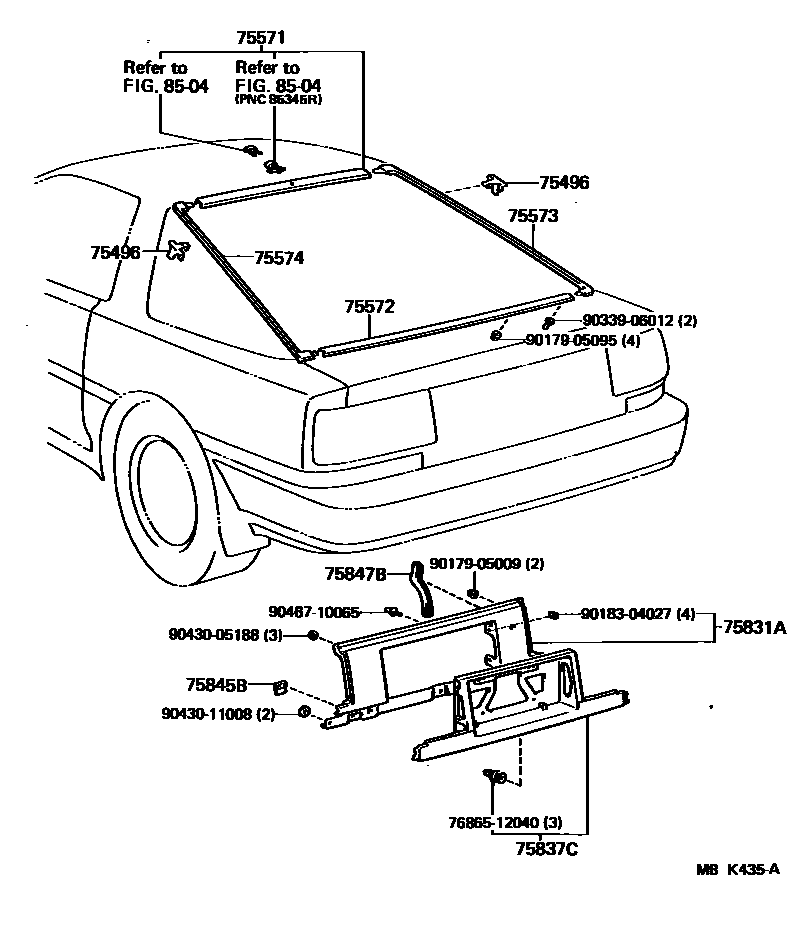

REAR MOULDING

75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1

main75496-14010iMA70198601-198808

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-14190iMA70198601-198808

75572MOULDING, BACK WINDOW, LOWER

main75575-14170iMA70198601-198808

75573MOULDING, BACK WINDOW SIDE, RH

main75573-14200iMA70..TWC198601-198607

main75573-14201iMA70198607-198703

sub75573-14202

main75573-14202iMA70198703-198808

75574MOULDING, BACK WINDOW SIDE, LH

main75574-14170iMA70..TWC198601-198607

main75574-14171iMA70198607-198703

sub75574-14172

main75574-14172iMA70198703-198808

75831APANEL, LOWER BACK FINISH, CENTER

main75831-14280iMA70..TWC198601-198808

main75831-14291iMA70..TWT198608-198808

75837CCOVER, LOWER BACK FINISH PANEL HOLE

main75837-14060-02iMA70198601-198808

MAROON-M,MAROON METALLIC,TRIM3#

main75837-14060-03iMA70198601-198808

GRAY-M,GRAY METALLIC,TRIM1#

main75837-14060-04iMA70198601-198808

BLUE-M,BLUE METALLIC,TRIM8#

75845BPAD, LOWER BACK FINISH PANEL

main75845-14160iMA70198601-198808

75847BPAD, LOWER BACK PANEL MOULDING

main75847-14040iMA70198601-198808

8504

7686512040RETAINER, REAR SPOILER, NO.1

main76865-12040

9017905009

main90179-05009

9017905095

main90179-05095

9018304027

main90183-04027

9033906012

main90339-06012

9043005188

main90430-05188

9043011008

main90430-11008

9046710065

main90467-10065

18 parts on this diagram · 1 diagram in section
