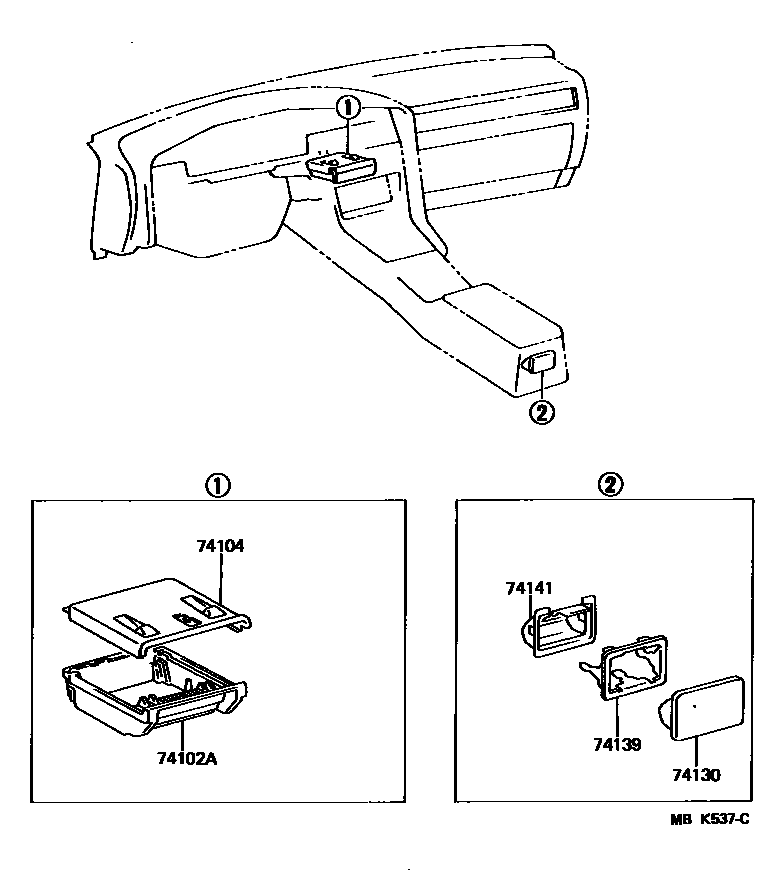

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-14120iMA70198601-198808

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-14130iMA70198601-198808

74130RECEPTACLE ASSY, REAR ASH

main74109-20040-04iMA70198601-198610

BLUE,DEEP BLUE,TRIM8#

sub74109-32010

main74109-20040-05iMA70198601-198610

BEIGE,DARK BEIGE,TRIM4#

sub74109-32010

main74109-20040-12iMA70198601-198610

MAROON,MAROON,TRIM3#

sub74109-32010

main74109-20040-13iMA70198601-198610

GRAY,MEDIUM GRAY,TRIM1#

sub74109-32010

main74109-32010-02iMA70198610-198808

MAROON,MAROON,TRIM3#

sub74109-20080

sub74109-32010

main74109-32010-03iMA70198610-198808

GRAY,MEDIUM GRAY,TRIM1#

sub74109-20080

sub74109-32010

main74109-32010-05iMA70198610-198808

BEIGE,DARK BEIGE,TRIM4#

sub74109-20080

sub74109-32010

main74109-32010-14iMA70198610-198808

BLUE,BLUE,TRIM8#

sub74109-20080

sub74109-32010

74139RETAINER, REAR ASH RECEPTACLE, OUTER

main74135-14010iMA70198601-198808

74141RETAINER, REAR ASH RECEPTACLE, INNER

main74137-14010iMA70198601-198808

5 parts on this diagram · 1 diagram in section
