LOCK CYLINDER SET

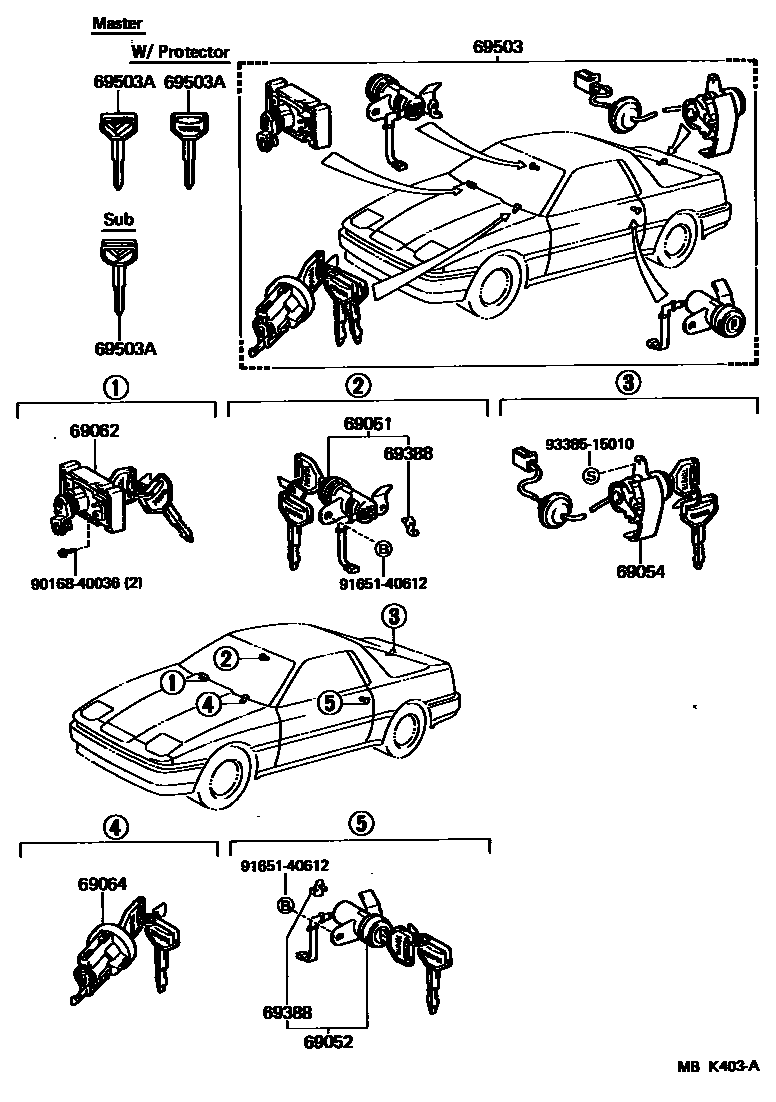

Parts diagram

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-14170i198601-198701

main69051-14171i198701-198808

main69051-14180i198601-198808

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-14160i198601-198701

main69052-14161i198701-198808

main69052-14170i198601-198808

69054CYLINDER & KEY SET, BACK DOOR LOCK

main69055-14290i198601-198808

main69055-14300i198601-198808

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-14110-02i198601-198808

MAROON,MAROON,TRIM3#

main69056-14110-03i198601-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69056-14110-04i198601-198808

BLUE,DEEP BLUE,TRIM8#

main69056-14110-05i198601-198808

BEIGE,DARK BEIGE,TRIM4#

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20140i198601-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040i198601-198808

RH

main69759-30050i198601-198808

LH

69503CYLINDER SET, LOCK

main69005-14600-02i198601-198701

MAROON,MAROON,TRIM3#

main69005-14600-03i198601-198701

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69005-14600-04i198601-198701

BLUE,DEEP BLUE,TRIM8#

main69005-14600-05i198601-198701

BEIGE,DARK BEIGE,TRIM4#

main69005-14601-02i198701-198808

MAROON,MAROON,TRIM3#

main69005-14601-03i198701-198808

GRAY,MEDIUM GRAY,TRIM1#

main69005-14601-04i198701-198808

BLUE,DEEP BLUE,TRIM8#

main69005-14601-05i198701-198808

BEIGE,DARK BEIGE,TRIM4#

main69005-14610-02i198601-198808

MAROON,MAROON,TRIM3#

main69005-14610-03i198601-198808

GRAY,MEDIUM GRAY METALLIC,TRIM1#

main69005-14610-04i198601-198808

BLUE,DEEP BLUE,TRIM8#

main69005-14610-05i198601-198808

BEIGE,DARK BEIGE,TRIM4#

69503AKEY, BLANK

main90999-00085i198601-198808

MASTER KEY,MASTER KEY

main90999-00094i198601-198808

SUB KEY,SUB KEY

main90999-00106i198601-198808

MASTER KEY,W(*68),MASTER KEY,W/PROTECTOR

9016840036

main90168-40036

9165140612

main91651-40612

9338515010

main93385-15010

11 parts on this diagram · 1 diagram in section
