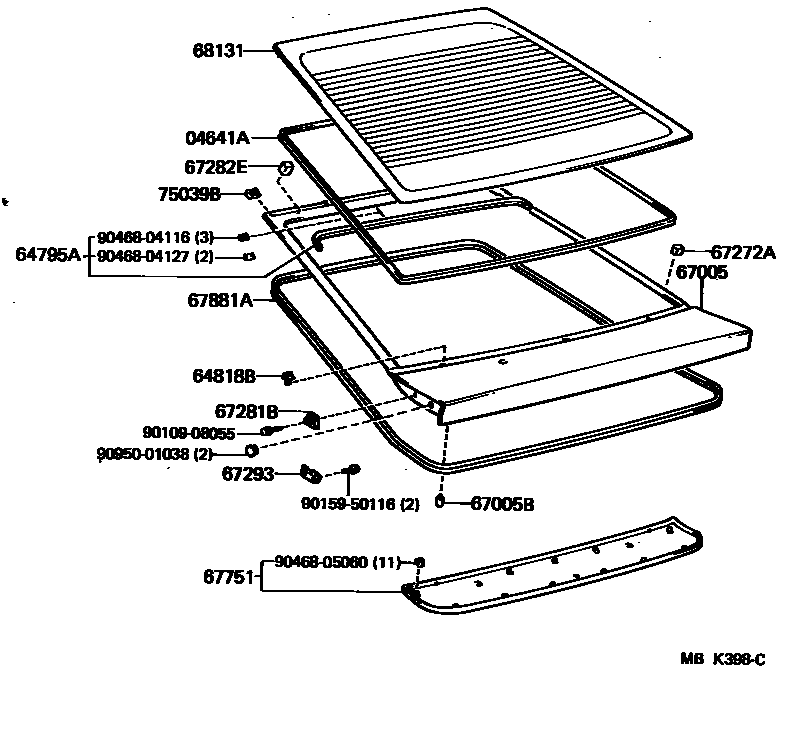

BACK DOOR PANEL & GLASS
04641ADAM KIT, BACK WINDOW GLASS ADHESIVE
64795ATRIM, BACK WINDOW OPENING
64818BSPACER, BACK DOOR GLASS, NO.1
sub64818-14011
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67272ACUSHION, BACK DOOR STOPPER, NO.2
67281BSTOPPER, BACK DOOR, LOWER
67282ECUSHION, BACK DOOR STOPPER, NO.3
67293CUSHION, BACK DOOR LOWER STOPPER
67751BOARD, BACK DOOR TRIM
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
MAROON,MAROON,TRIM3#
GRAY,MEDIUM GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BEIGE,DARK BEIGE,TRIM4#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*EHTT,T=5.0,*EHTT,T=5.0
*EHTT,T=4.0,*EHTT,T=4.0,COLD SPEC
*EHTT,T=5.0,BRONZE,*EHTT,T=5.0,BRONZE
*EHTT,T=4.0,BRONZE,*EHTT,T=4.0,BRONZE,COLD SPEC
75039BCLIP SUB-ASSY, BACK DOOR GLASS, NO.1
9010908055
main90109-08055
9015950116
main90159-50116
9046804116
main90468-04116
9046804127
main90468-04127
9046805060
main90468-05060
9095001038
main90950-01038
19 parts on this diagram · 1 diagram in section
