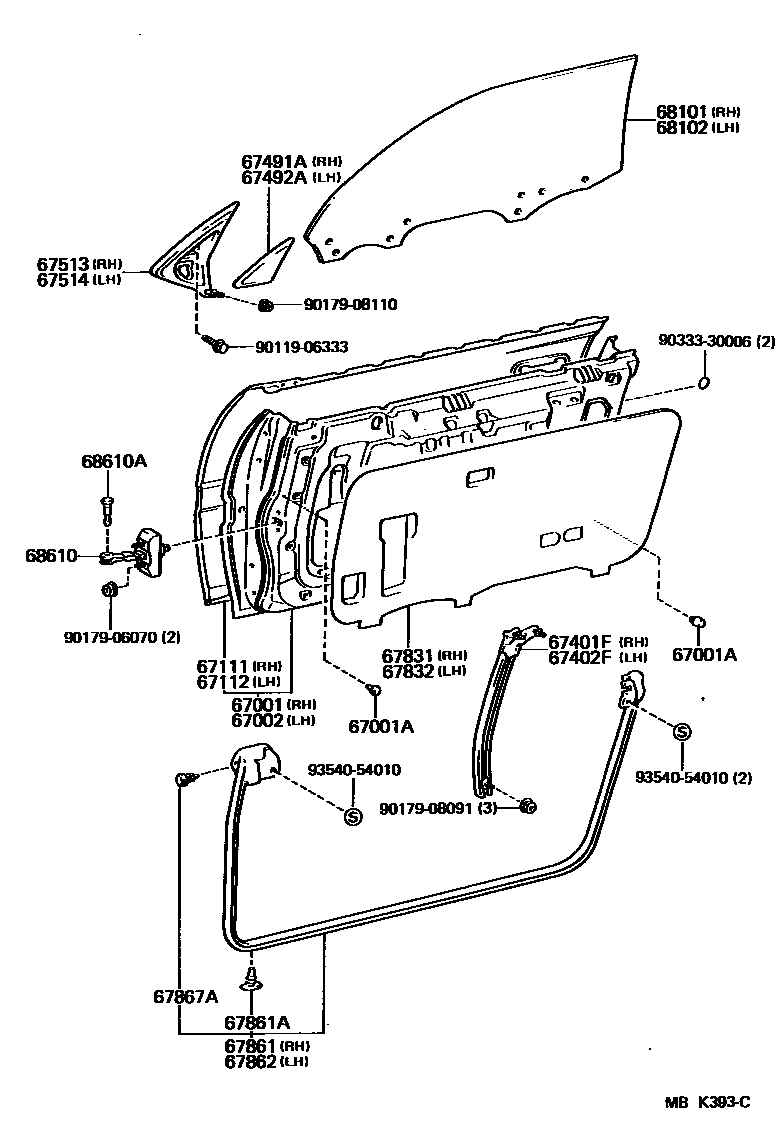

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-14320iMA70..SPR198604-198808

main67001-14340iMA70..LB198601-198808

67001ACUSHION, FRONT DOOR PANEL

main90541-06013iMA70198601-198808

SIDE IMPACT BEAM

main90541-09051iMA70198601-198808

INNER PANEL

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-14350iMA70..SPR198604-198808

main67002-14370iMA70..LB198601-198808

67111PANEL, FRONT DOOR, OUTER RH

main67111-14220iMA70198601-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-14230iMA70198601-198808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-14230iMA70198601-198808

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-14220iMA70198601-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-14110iMA70198601-198602

main67491-14111iMA70198602-198808

sub67491-14H01

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-14110iMA70198601-198602

main67492-14111iMA70198602-198808

sub67492-14H01

67513BRACKET, FRONT DOOR MIRROR, RH

main67513-14020iMA70198601-198602

main67513-14021iMA70198602-198808

sub67513-14022

67514BRACKET, FRONT DOOR MIRROR, LH

main67514-14020iMA70198601-198602

main67514-14021iMA70198602-198805

sub67514-14022

main67514-14022iMA70198805-198808

sub67514-14012

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-14200iMA70198601-198808

sub67831-14180

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-14110iMA70198601-198808

sub67832-14090

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-14300iMA70198601-198808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iMA70198601-198808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-14300iMA70198601-198808

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67869-30020iMA70198601-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-14330iMA70198601-198808

*TT,T=5.0,*TT,T=5.0

main68111-14340iMA70198601-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-14340iMA70198601-198808

*TT,T=5.0,*TT,T=5.0

main68112-14350iMA70198601-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68610CHECK ASSY, FRONT DOOR

main68610-14060iMA70198604-198808

main68610-14070iMA70198601-198604

68610APIN(FOR FRONT DOOR CHECK)

main68617-90K00iMA70198601-198808

9011906333

main90119-06333

9017906070

main90179-06070

9017908091

main90179-08091

9017908110

main90179-08110

9033330006

main90333-30006

9354054010

main93540-54010

27 parts on this diagram · 2 diagrams in section
