MAT & CARPET

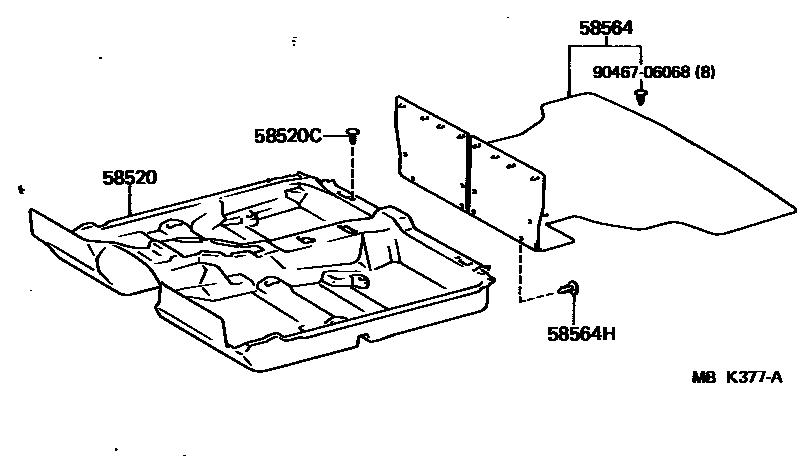

Parts diagram

58520CARPET ASSY, FRONT FLOOR

main58510-1B010-02i198601-198808

MAROON,MAROON,TRIM3#

main58510-1B010-03i198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main58510-1B010-04i198601-198808

BLUE,DEEP BLUE,TRIM8#

main58510-1B010-05i198601-198808

BEIGE,DARK BEIGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-01i198601-198808

BLACK,BLACK

58564CARPET, REAR FLOOR

main58570-14300-02i198601-198808

MAROON,MAROON,TRIM3#

main58570-14300-03i198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main58570-14300-04i198601-198808

BLUE,DEEP BLUE,TRIM8#

main58570-14300-05i198601-198808

BEIGE,DARK BEIGE,TRIM4#

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-06070-02i198601-198808

MAROON,MAROON,TRIM3#

main90467-06070-03i198601-198808

GRAY,MEDIUM GRAY,TRIM1#

main90467-06070-04i198601-198808

BLUE,DEEP BLUE,TRIM8#

main90467-06070-05i198601-198808

BEIGE,DARK BEIGE,TRIM4#

9046706068

main90467-06068

5 parts on this diagram · 1 diagram in section
