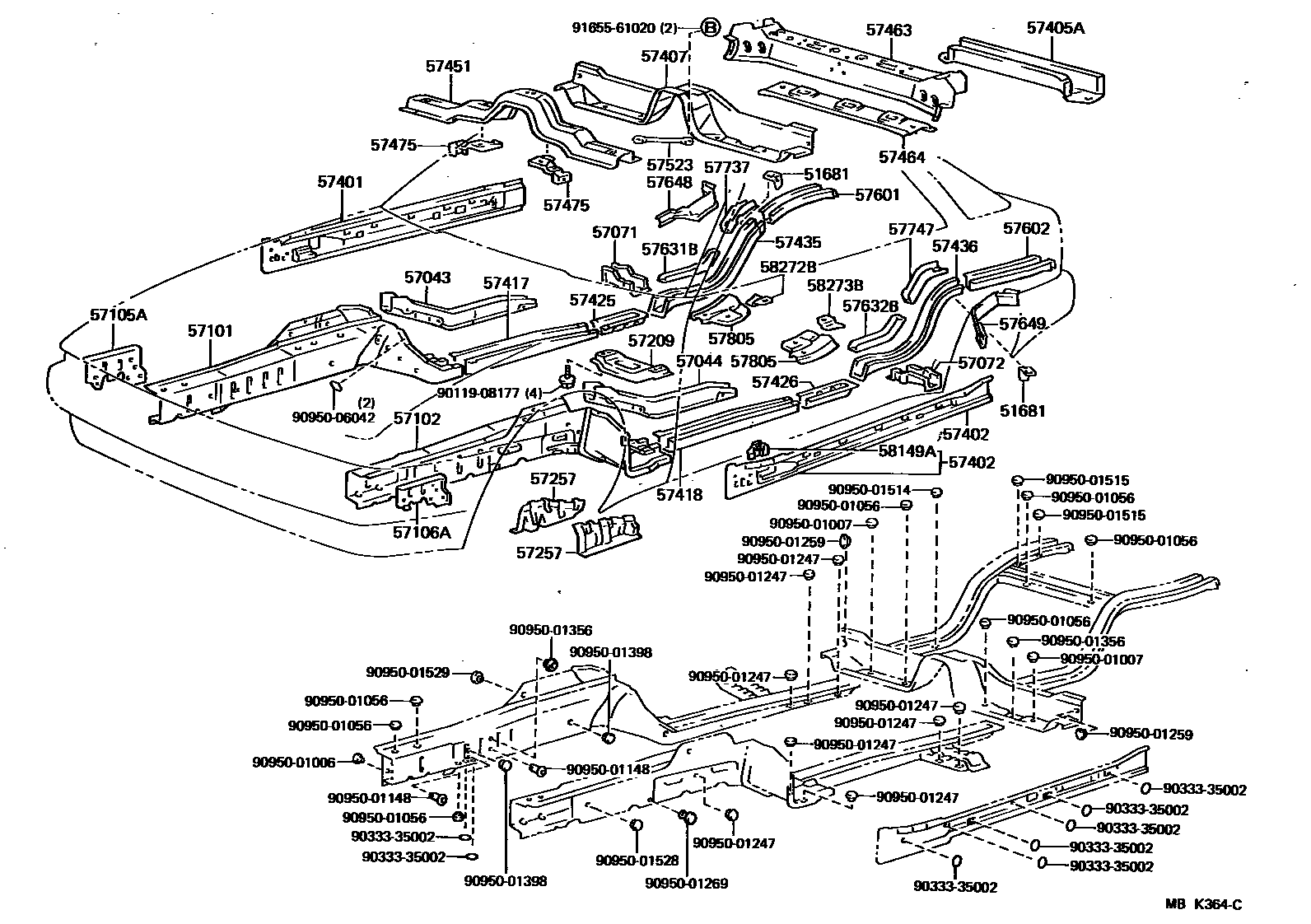

FLOOR SIDE MEMBER

51681BRACKET, FLEXIBLE HOSE

main51681-14010iMA70198601-198808

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-14010iMA70198601-198808

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-14010iMA70198601-198808

57071BOX SUB-ASSY, TORQUE, REAR RH

main57071-14040iMA70198601-198808

57072BOX SUB-ASSY, TORQUE, REAR LH

main57072-14040iMA70198601-198808

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-14901iMA70198601-198808

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-14901iMA70198601-198808

sub57102-14906

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-14020iMA70198601-198808

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-14010iMA70198601-198808

57209MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main57209-14310iMA70..5F..TWC198601-198808

main57209-14320iMA70..4FC..TWC198601-198808

57257BRACKET, ENGINE REAR SUPPORT MEMBER

main57257-14060iMA70198601-198808

RH

main57258-14060iMA70198601-198808

LH

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-14230iMA70..LB198601-198808

main57401-14240iMA70..SPR198604-198808

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-14210iMA70..LB198601-198808

main57402-14220iMA70..SPR198604-198808

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-14070iMA70198601-198808

57407CROSSMEMBER SUB-ASSY, CENTER FLOOR, NO.1

main57407-14020iMA70198601-198808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-14060iMA70198601-198808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-14060iMA70198601-198808

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57426-14030iMA70198601-198808

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-14030iMA70198601-198808

57435MEMBER, CENTER FLOOR SIDE, RH

main57435-14060iMA70198601-198808

57436MEMBER, CENTER FLOOR SIDE, LH

main57436-14050iMA70198601-198808

57451MEMBER, FRONT FLOOR CROSS

main57451-14040iMA70198601-198808

57463MEMBER, CENTER FLOOR CROSS, NO.3

main57463-14050iMA70198601-198808

57464STRENGTH, CENTER FLOOR CROSSMEMBER

main57464-14020iMA70198601-198808

57475PLATE, FRONT FLOOR CROSSMEMBER

main58103-14010iMA70198601-198808

RH

main58104-14010iMA70198601-198808

LH

57523BRACE, CENTER FLOOR CROSSMEMBER

main57523-14010iMA70198601-198808

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-14150iMA70198601-198808

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-14140iMA70198601-198808

57631BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT RH

main57631-14030iMA70198601-198808

57632BREINFORCEMENT, REAR FLOOR SIDE MEMBER, FRONT LH

main57632-14040iMA70198601-198808

57648GUSSET, QUARTER WHEEL HOUSE, NO.1 RH

main57648-14010iMA70198601-198808

57649GUSSET, QUARTER WHEEL HOUSE, NO.1 LH

main57649-14010iMA70198601-198808

57737REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH

main57737-14020iMA70198601-198808

57747REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH

main57747-14020iMA70198601-198808

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-14040iMA70198601-198808

RH

main57806-14040iMA70198601-198808

LH

58149APLATE, FRONT FLOOR SIDE, REAR LH

main58149-14010iMA70198601-198808

58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4

main58272-14020iMA70198601-198808

58273BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.5

main58273-14080iMA70198601-198808

9011908177

main90119-08177

9033335002

main90333-35002

9095001006

main90950-01006

9095001007

main90950-01007

9095001056

main90950-01056

9095001148

main90950-01148

9095001247

main90950-01247

9095001259

main90950-01259

9095001269

main90950-01269

9095001356

main90950-01356

9095001398

main90950-01398

9095001514

main90950-01514

9095001515

main90950-01515

9095001528

main90950-01528

9095001529

main90950-01529

9095006042

main90950-06042

9165561020

main91655-61020

55 parts on this diagram · 1 diagram in section
