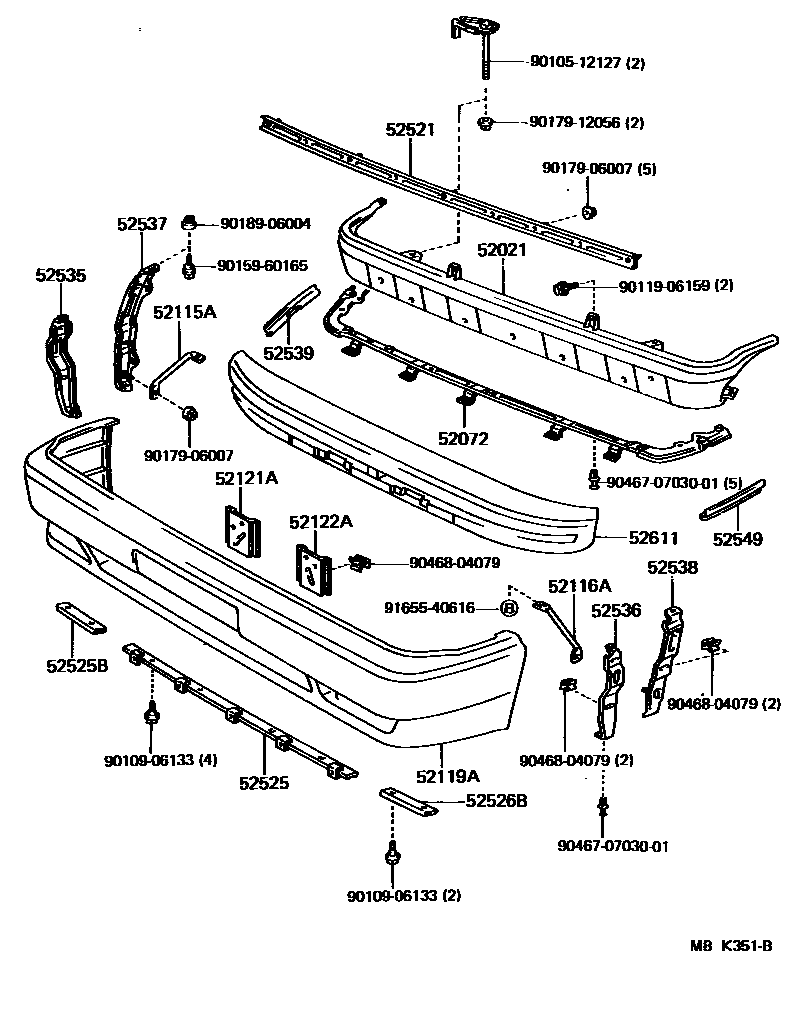

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52072RETAINER SUB-ASSY, FRONT BUMPER, LOWER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH
52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH
52521RETAINER, FRONT BUMPER, UPPER CENTER
52525RETAINER, FRONT BUMPER, LOWER CENTER
52525BRETAINER, FRONT BUMPER, LOWER SIDE RH
52526BRETAINER, FRONT BUMPER, LOWER SIDE LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52537RETAINER, FRONT BUMPER END, RH
52538RETAINER, FRONT BUMPER END, LH
52539RETAINER, FRONT BUMPER SIDE, NO.3 RH
52549RETAINER, FRONT BUMPER SIDE, NO.3 LH
52611ABSORBER, FRONT BUMPER ENERGY
9010512127
main90105-12127
9010906133
main90109-06133
9011906159
main90119-06159
9015960165
main90159-60165
9017906007
main90179-06007
9017912056
main90179-12056
9018906004
main90189-06004
904670703001
main90467-0703001
9046804079
main90468-04079
9165540616
main91655-40616
28 parts on this diagram · 1 diagram in section
