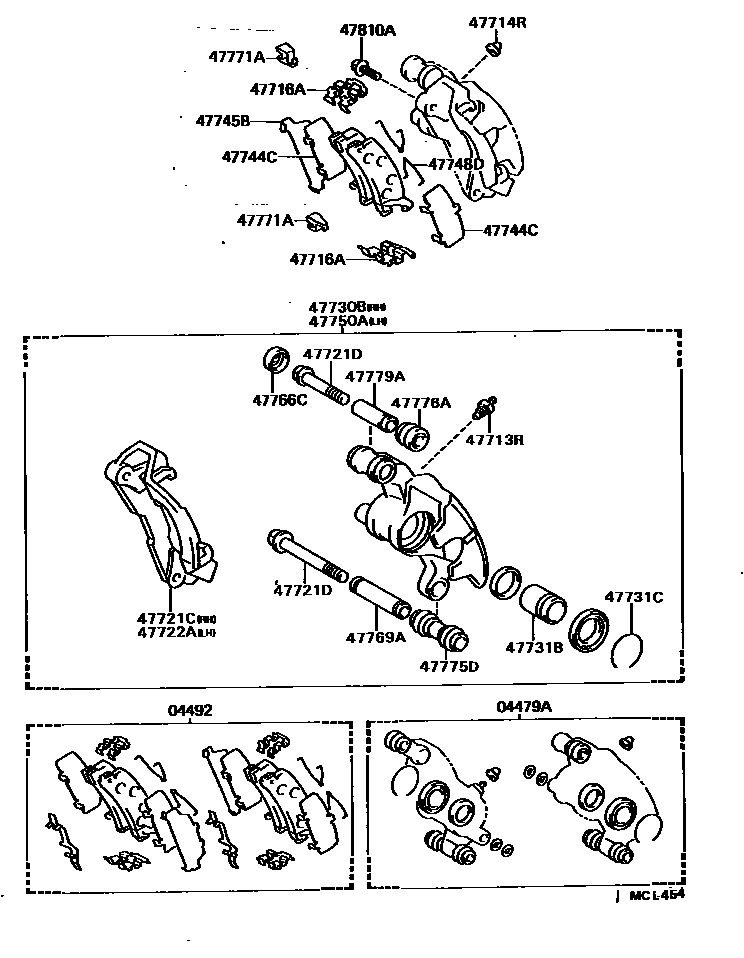

REAR DISC BRAKE CALIPER & DUST COVER
04479ACYLINDER KIT, DISC BRAKE, REAR
04492PAD KIT, DISC BRAKE, REAR
47713RPLUG, BLEEDER(FOR REAR DISC BRAKE)
47714RCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)
47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.25PX65-15
*8-1.25PX62-20
47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
47731BPISTON, REAR DISC BRAKE
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)
47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)
47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
47766CCAP, CYLINDER SLIDE PIN
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)
47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)
47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)
47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
22 parts on this diagram · 2 diagrams in section
