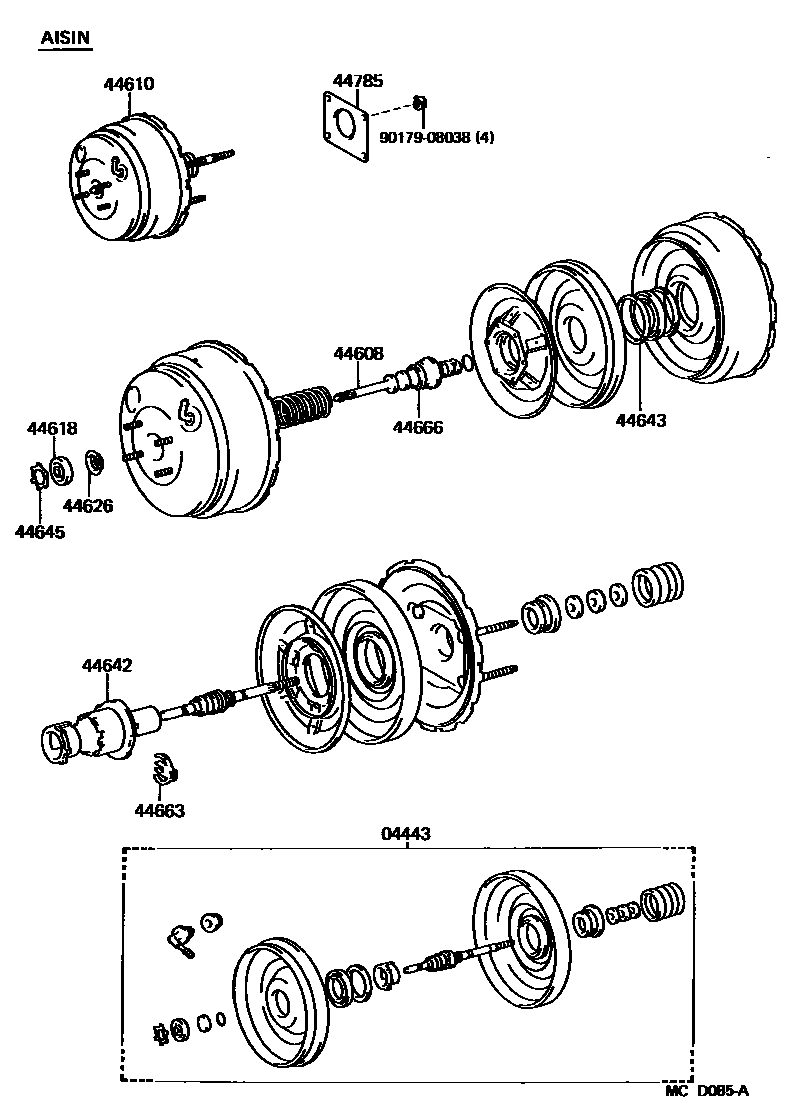

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04443BOOSTER KIT, BRAKE

main04443-14520iMA70¥16,300198601-198808

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iMA70¥1,260198601-198808

44610BOOSTER ASSY, BRAKE

main44610-14670iMA70¥68,900198601-198808

44618SEAL, BOOSTER BODY

main44621-14030iMA70¥400198601-198808

44626RETAINER, BOOSTER ROD CUP

main44626-60010iMA70¥160198601-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iMA70¥2,740198601-198808

44643RETAINER, DIAPHRAGM

main44643-20800iMA70¥350198601-198808

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010iMA70¥440198601-198808

44663KEY, VALVE STOPPER

main44635-20800iMA70¥230198601-198808

44666CASE, REACTION DISC

main44657-20800iMA70¥1,430198601-198808

44785GASKET, BRAKE BOOSTER

main44785-30020iMA70¥250198601-198808

9017908038

main90179-08038¥130

12 parts on this diagram · 2 diagrams in section
