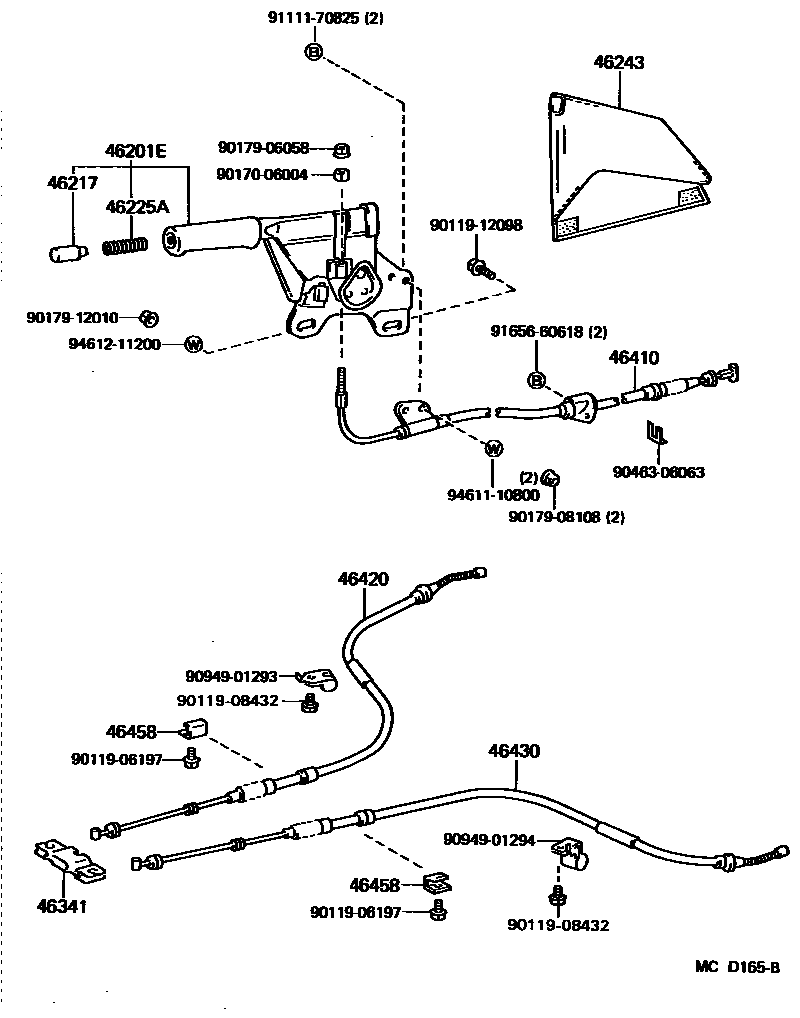

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-14180-02iMA70198601-198802

MAROON,MAROON,TRIM3#

sub46201-14230

main46201-14180-03iMA70198601-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14230

main46201-14180-04iMA70198601-198802

BLUE,DEEP BLUE,TRIM8#

sub46201-14230

main46201-14180-05iMA70198601-198802

BEIGE,BEIGE,TRIM4#

sub46201-14230

main46201-14230-02iMA70198802-198808

MAROON,MAROON,TRIM3#

sub46201-14181

main46201-14230-03iMA70198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46201-14181

main46201-14230-04iMA70198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46201-14181

main46201-14230-05iMA70198802-198808

BEIGE,BEIGE,TRIM4#

sub46201-14181

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-22040-04iMA70198601-198802

BLUE,DEEP BLUE,TRIM8#

sub46217-22040

main46217-22040-12iMA70198601-198802

MAROON,MAROON,TRIM3#

sub46217-22040

main46217-22040-13iMA70198601-198802

GRAY,MEDIUM GRAY,TRIM1#

sub46217-22040

main46217-22040-15iMA70198601-198802

BEIGE,BEIGE,TRIM4#

sub46217-22040

main46217-32010-04iMA70198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46217-32010

main46217-32010-13iMA70198802-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46217-32010

main46217-32010-15iMA70198802-198808

BEIGE,DARK BEIGE,TRIM4#

sub46217-32010

main46217-32010-D0iMA70198802-198808

MAROON,MAROON,TRIM3#

sub46217-32010

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iMA70198601-198808

46243COVER, PARKING BRAKE LEVER

main46243-14100-02iMA70198601-198808

MAROON,MAROON,TRIM3#

sub46243-14100

main46243-14100-03iMA70198601-198808

GRAY,MEDIUM GRAY,TRIM1#

sub46243-14100

main46243-14100-04iMA70198601-198808

BLUE,DEEP BLUE,TRIM8#

sub46243-14100

main46243-14100-05iMA70198601-198808

BEIGE,BEIGE,TRIM4#

sub46243-14100

46341EQUALIZER, PARKING BRAKE

main46341-12010iMA70198601-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-14090iMA70198601-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-14290iMA70198601-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-14290iMA70198601-198808

46458RETAINER, CABLE

main46458-20020iMA70198601-198808

sub46458-50010

9011906197

main90119-06197

9011908432

main90119-08432

9011912098

main90119-12098

9017006004

main90170-06004

9017906058

main90179-06058

9017908108

main90179-08108

9017912010

main90179-12010

9046306063

main90463-06063

9094901293

main90949-01293

9094901294

main90949-01294

9111170825

main91111-70825

9165660618

main91656-60618

9461110800

main94611-10800

9461211200

main94612-11200

23 parts on this diagram · 2 diagrams in section
