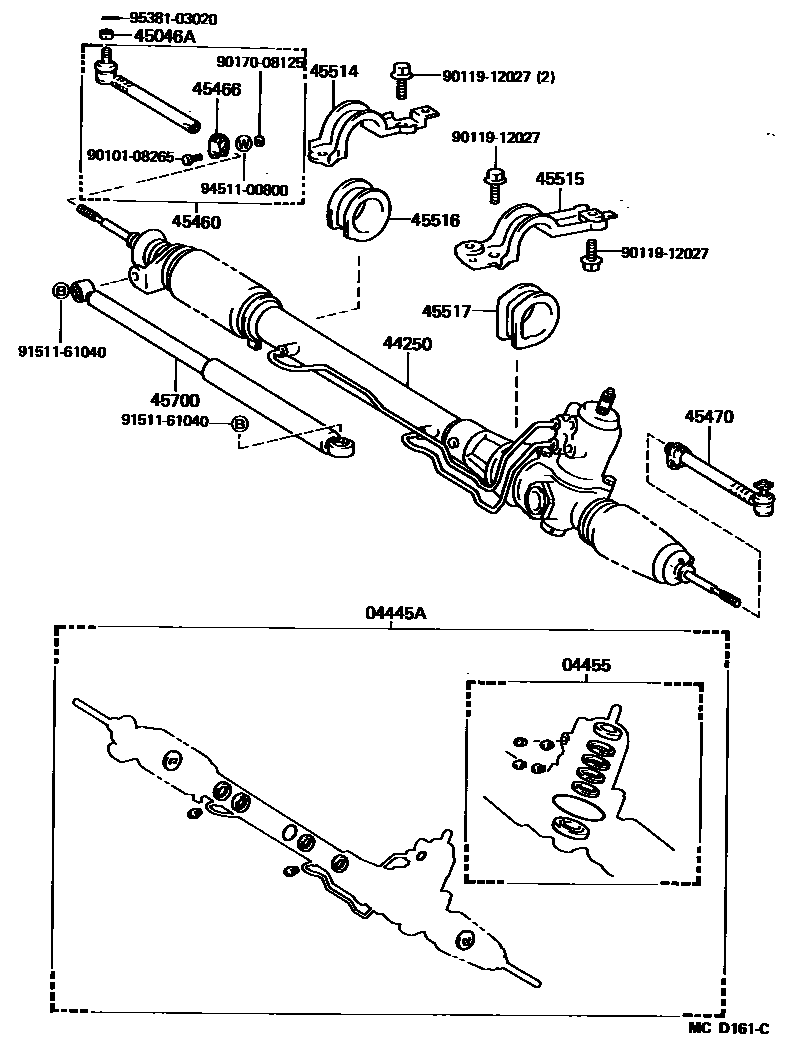

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20040iMA70198601-198808

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20050iMA70198601-198808

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-14110iMA70198601-198808

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMA70198601-198808

45460ROD ASSY, TIE, RH

main45460-19225iMA70198601-198808

45466CLAMP, TIE ROD END

main45466-22010iMA70198601-198808

45470ROD ASSY, TIE, LH

main45460-19225iMA70198601-198808

45514BRACKET, STEERING RACK HOUSING, NO.1

main45515-14080iMA70198601-198808

45515BRACKET, STEERING RACK HOUSING, NO.2

main45514-14080iMA70198601-198808

45516GROMMET, STEERING RACK HOUSING, NO.1

main45517-14030iMA70198601-198808

45517GROMMET, STEERING RACK HOUSING, NO.2

main45516-14010iMA70198601-198808

sub45516-14020

45700DAMPER ASSY, STEERING

main45700-14010iMA70198601-198808

9010108265

main90101-08265

9011912027

main90119-12027

9017008125

main90170-08125

9151161040

main91511-61040

9451100800

main94511-00800

9538103020

main95381-03020

18 parts on this diagram · 2 diagrams in section
