POWER STEERING TUBE

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMA70¥260198601-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-14100iMA70..TWC¥4,430198601-198808

main44348-14120iMA70..TWT¥1,290198608-198808

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iMA70¥590198601-198712

main90467-21005iMA70¥330198712-198808

sub90467-21010¥380

44369BRACKET, OIL RESERVOIR, NO.1

main44369-14020iMA70..TWT¥3,650198608-198808

main44390-14010iMA70..TWC¥2,570198601-198808

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-14150iMA70¥9,800198601-198808

44410TUBE ASSY, PRESSURE FEED

main44410-14111iMA70..TWC¥31,700198601-198808

main44410-14120iMA70..TWT¥30,000198608-198808

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iMA70¥610198601-198703

main90401-16013iMA70¥510198703-198808

44412HOSE, RETURN

main44412-14200iMA70..TWC¥4,430198601-198808

main44412-14220iMA70..TWT¥1,690198608-198808

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iMA70¥240198601-198808

sub90467-16019¥300

44443BRACKET, PUMP

main44443-14010iMA70¥6,700198601-198808

44444STAY, PUMP, REAR

main44444-14020iMA70¥2,020198601-198808

44446STRUT, ADJUSTING

main44446-14020iMA70¥1,890198601-198808

9010510038

main90105-10038¥300

9010510093

main90105-10093¥780

9011610097

main90116-10097¥180

9011906089

main90119-06089¥160

9011906746

main90119-06746¥90

9011910033

main90119-10033¥250

9011910106

main90119-10106¥230

9011910366

main90119-10366¥110

9017906009

main90179-06009¥120

9017908044

main90179-08044¥160

9017910016

main90179-10016¥130

9046212056

main90462-12056¥270

9094901217

main90949-01217¥390

9161160614

main91611-60614¥180

9165140614

main91651-40614¥160

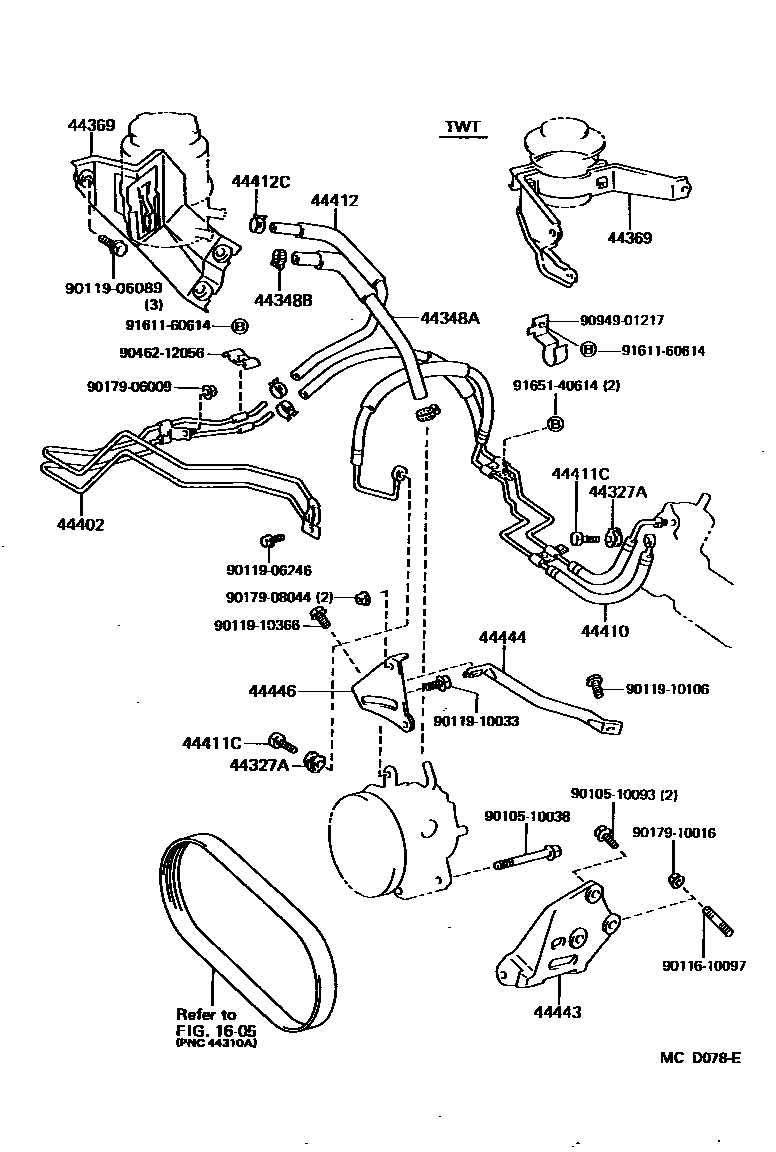

28 parts on this diagram · 1 diagram in section
