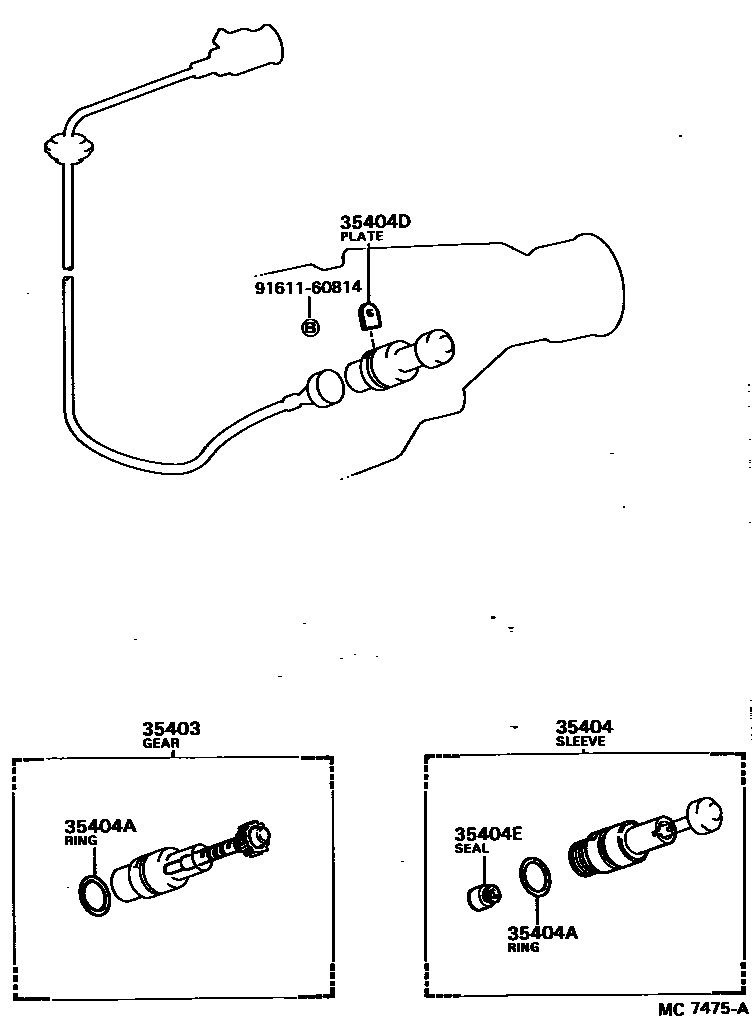

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29065iMA70..4FC..TWT198608-198808

main33482-39015iMA70..4FC..TWC198601-198808

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iMA70..4FC198601-198808

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iMA70..4FC198607-198808

main90301-18018iMA70..4FC198601-198607

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iMA70..4FC198601-198808

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iMA70..4FC198601-198808

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
