EXTENSION HOUSING (ATM)

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-24020iMA70..4FC¥26,400198601-198807

sub35108-24021¥28,000

main35108-24021iMA70..4FC¥28,000198807-198808

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40001iMA70..4FC¥400198601-198808

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30010iMA70..4FC¥1,680198601-198808

sub33146-30020¥990

35182GASKET, EXTENSION HOUSING (ATM)

main35182-22010iMA70..4FC¥780198601-198808

sub35182-28010¥520

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iMA70..4FC¥500198601-198808

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iMA70..4FC¥460198601-198808

9011910232

main90119-10232¥110

9011910233

main90119-10233¥160

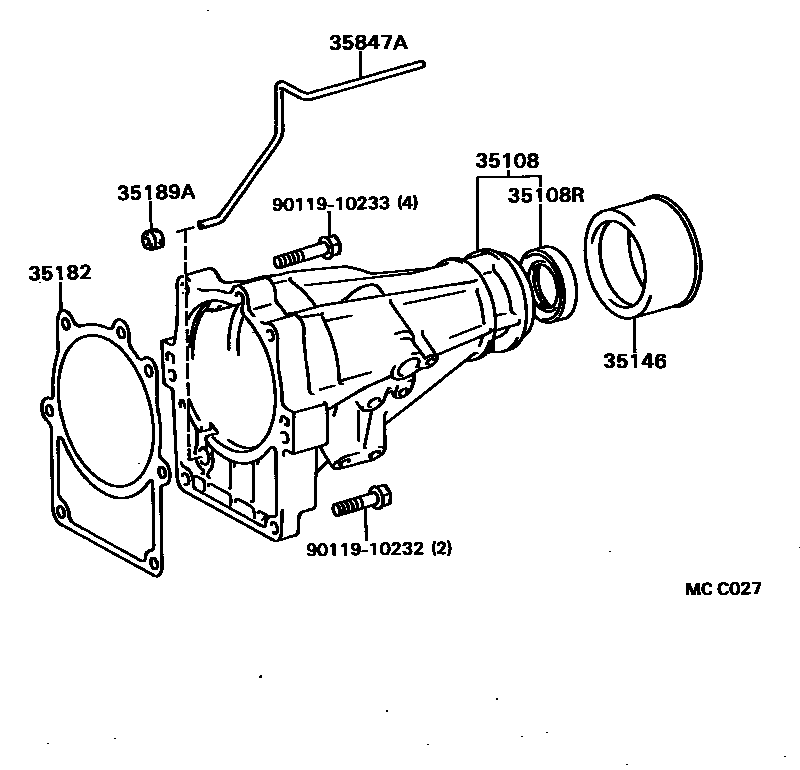

8 parts on this diagram · 1 diagram in section
