CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14011iMA70..5F198601-198704

sub04311-14012

main04311-14012iMA70..5F..TWC198704-198804

sub04311-14013

main04311-14020iMA70..5F..TWT198611-198612

sub04311-14021

main04311-14040iMA70..5F..TWT198612-198808

sub04311-14041

main04311-14041iMA70..5F..TWT198704-198808

sub04311-22050

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-14010iMA70..5F198601-198808

31410CYLINDER ASSY, CLUTCH MASTER

main31410-14190iMA70..5F..TWT198611-198612

sub31410-14191

main31410-14191iMA70..5F..TWT198612-198704

sub31410-14192

main31410-14192iMA70..5F..TWC198704-198808

sub31410-14193

main31410-14200iMA70..5F198601-198612

sub31410-14201

main31410-14201iMA70..5F..TWC198612-198704

sub31410-14202

main31410-14202iMA70..5F..TWC198704-198804

sub31410-14193

31415GASKET, CLUTCH MASTER CYLINDER

main31415-14020iMA70..5F..TWC198601-198605

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iMA70..5F198601-198808

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iMA70..5F198601-198808

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iMA70..5F198601-198808

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iMA70..5F198601-198808

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iMA70..5F198601-198609

main31451-22070iMA70..5F..TWT198611-198808

main31451-30120iMA70..5F198609-198808

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-14010iMA70..5F..TWT198611-198808

sub31404-14011

main31453-10010iMA70..5F198601-198611

sub31453-10020

main31453-10020iMA70..5F..TWC198611-198804

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14020iMA70..5F198601-198808

9011608146

main90116-08146

9017908107

main90179-08107

9412040800

main94120-40800

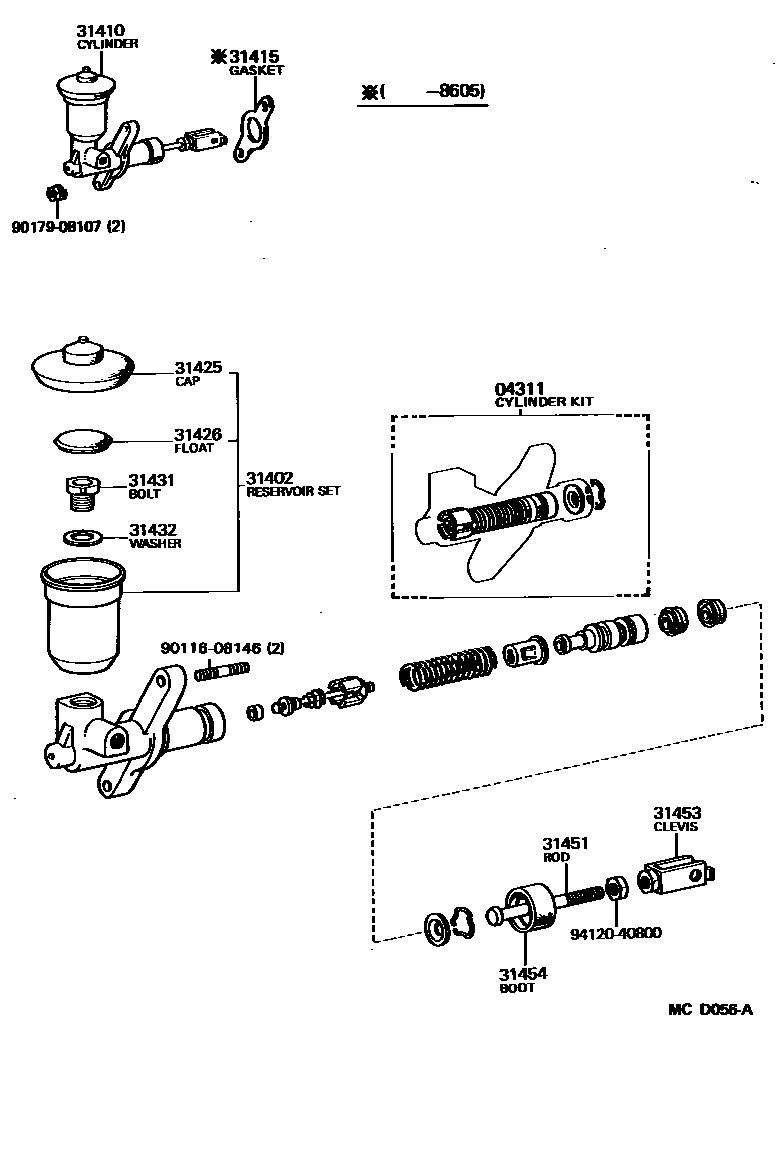

14 parts on this diagram · 1 diagram in section
