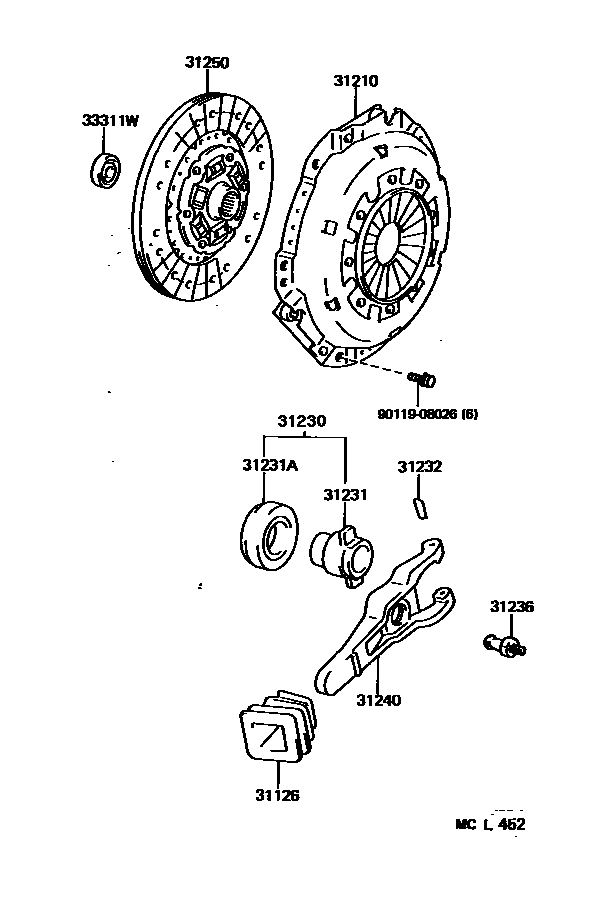

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-14010iMA70..5F..TWC198601-198808

31210COVER ASSY, CLUTCH

main31210-14140iMA70..5F..TWC198601-198808

sub31210-14160

main31210-14150iMA70..5F..TWT198608-198808

31230BEARING ASSY, CLUTCH RELEASE

main31230-14030iMA70..5F..TWC198807-198808

31231HUB, CLUTCH RELEASE BEARING

main31231-14040iMA70..5F..TWT198608-198808

main31231-36070iMA70..5F..TWC198601-198807

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iMA70..5F..TWC198601-198807

main90363-45012iMA70..5F..TWT198608-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-14010iMA70..5F..TWC198807-198808

main31232-20010iMA70..5F..TWC198601-198807

31236BALL, RELEASE FORK

main31236-14010iMA70..5F..TWC198601-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-14020iMA70..5F..TWC198601-198804

main31204-14021iMA70..5F..TWC198804-198808

main31204-14030iMA70..5F..TWT198608-198711

sub31204-14031

main31204-14031iMA70..5F..TWT198711-198808

31250DISC ASSY, CLUTCH

main31250-14130iMA70..5F198601-198604

sub31250-36290

main31250-14160iMA70..5F..TWC198604-198808

sub31250-14161

main31250-14180iMA70..5F..TWT198608-198704

sub31250-14181

main31250-14181iMA70..5F..TWT198704-198808

sub31250-14182

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iMA70..5F198601-198808

sub90363-12024

9011908026

main90119-08026

11 parts on this diagram · 2 diagrams in section
