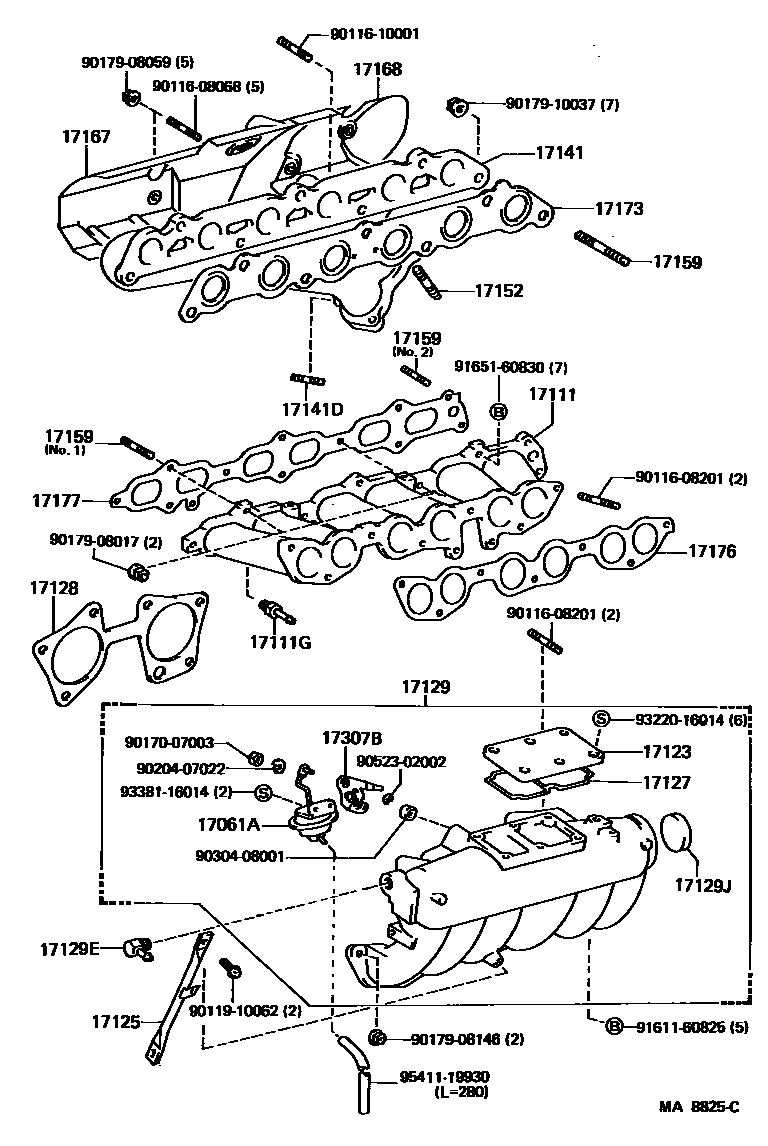

MANIFOLD
17061ADIAPHRAGM SUB-ASSY
17111MANIFOLD, INTAKE
17123COVER, SURGE TANK
sub17123-42020
17125STAY, SURGE TANK, NO.1
17127GASKET, SURGE TANK COVER
17128GASKET, SURGE TANK
sub17128-42020
17129EUNION, NO.3
sub90404-54039
17129JPLUG, TIGHT(FOR INTAKE AIR SURGE TANK)
OD=40,FR
OD=50,RR
17141MANIFOLD, EXHAUST
17141DBOLT, STUD(FOR OXYGEN SENSOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD,NO.2
INTAKE MANIFOLD,NO.1
EXHAUST MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
sub17176-42020
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
sub17177-42020
17307BLEVER SUB-ASSY, INTAKE AIR CONTROL
9011608068
main90116-08068
9011608201
main90116-08201
9011610001
main90116-10001
9011910062
main90119-10062
9017007003
main90170-07003
9017908017
main90179-08017
9017908059
main90179-08059
9017908146
main90179-08146
9017910037
main90179-10037
9020407022
main90204-07022
9030408001
main90304-08001
9052302002
main90523-02002
9161160825
main91611-60825
9165160830
main91651-60830
9322016014
main93220-16014
9338116014
main93381-16014
9541119930
main95411-19930
37 parts on this diagram · 3 diagrams in section
