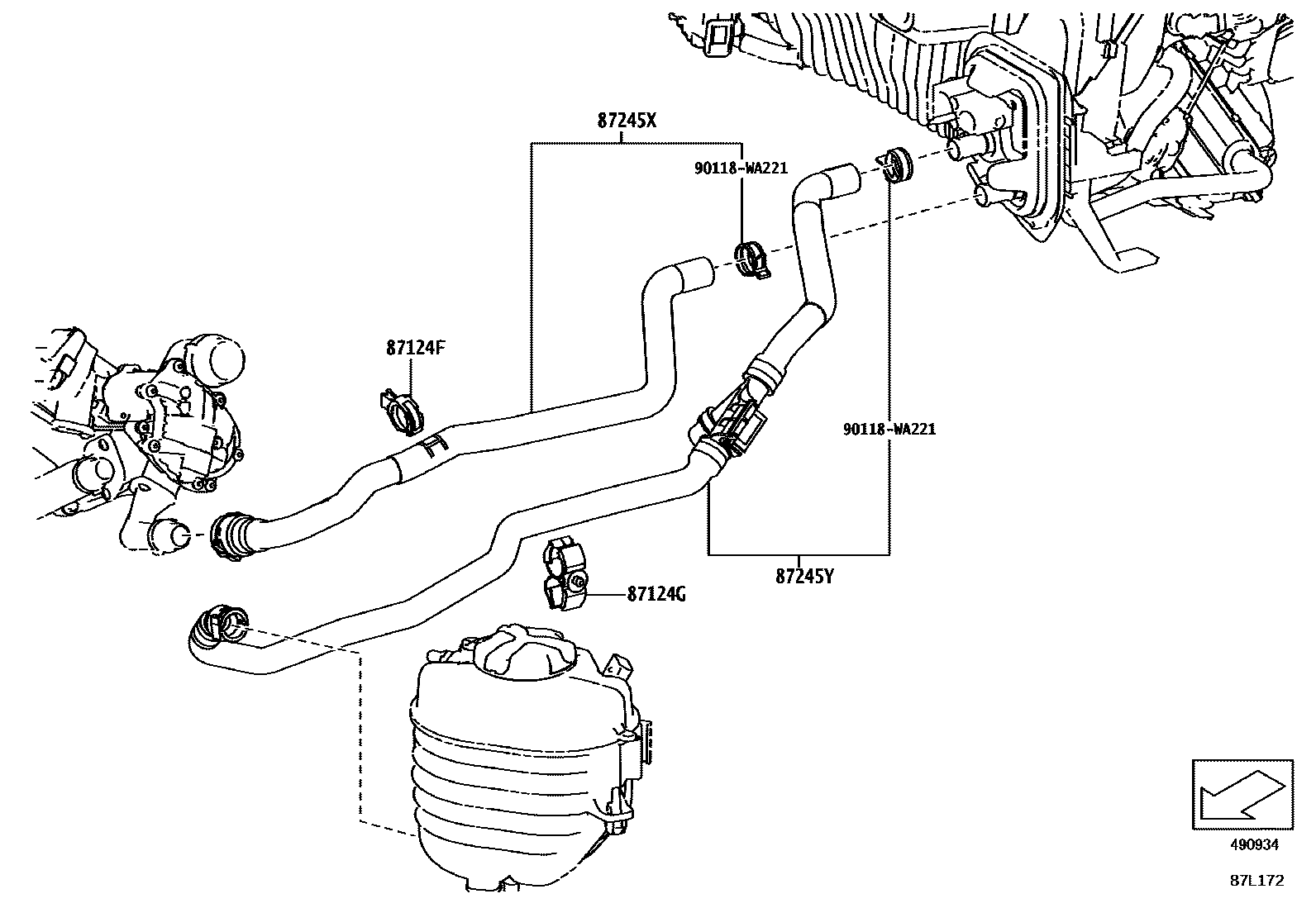

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87124FCLAMP, HEATER HOSE, NO.1

main16581-WAA01iDB0#,4#202207

87124GCLAMP, HEATER HOSE, NO.2

main88718-WAA01iDB0#,2#,4#,85202207

87245XHOSE, HEATER WATER

main87245-WAA03iDB0#,4#202207

main87245-WAA04iDB2#,85202207

87245YHOSE, HEATER WATER

main87245-WAA01iDB0#,4#202207

main87245-WAA02iDB2#,85202207

90118WA221

main90118-WA221

5 parts on this diagram · 2 diagrams in section
