CLEARANCE & BACK SONAR

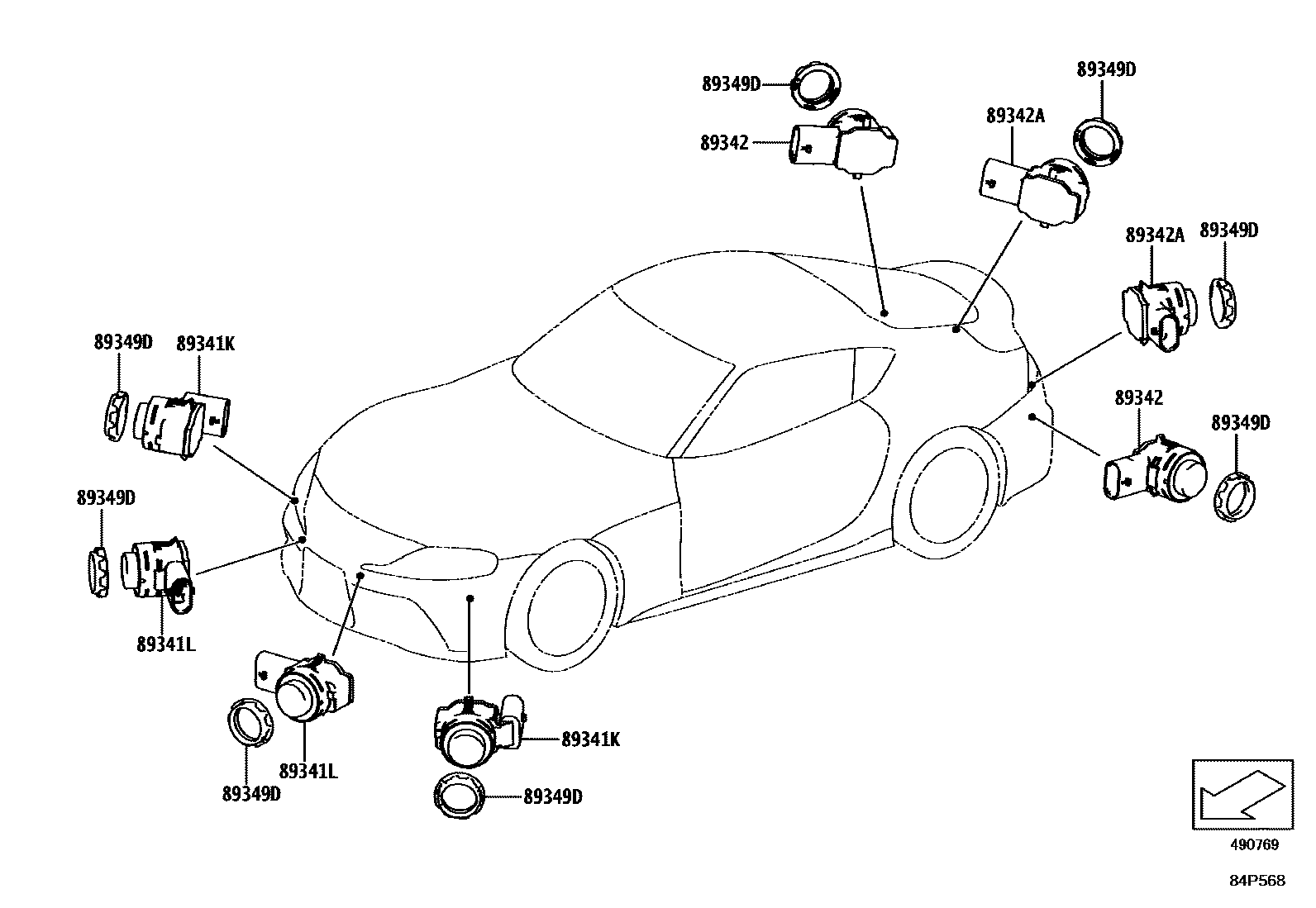

Parts diagram
89341KSENSOR, ULTRASONIC, FRONT CORNER
main89341-WAA11×2i202207
blue-stone metallic,D03
sub89341-WAA57
main89341-WAA35×2i202207
mediterran-blau metallic,D07
main89341-WAA38×2i202207
D05
main89341-WAA41×2i202207
D06
main89341-WAA44×2i202207
D08
main89341-WAA47×2i202207
D09
main89341-WAA50×2i202207
D04
main89341-WAA54×2i202207
D01
main89341-WAA60×2i202207
D02
main89341-WAA64×2i202207
D13
main89341-WAA70×2i202207
D14
main89341-WAA72×2i202207
D12
main89341-WAA81×2i202207
D19
89341LSENSOR, ULTRASONIC, FRONT CENTER
main89341-WAA11×2i202207
blue-stone metallic,D03
sub89341-WAA57
main89341-WAA32×2i202207
main89341-WAA35×2i202207
mediterran-blau metallic,D07
main89341-WAA38×2i202207
D05
main89341-WAA41×2i202207
D06
main89341-WAA44×2i202207
D08
main89341-WAA47×2i202207
D09
main89341-WAA50×2i202207
D04
main89341-WAA54×2i202207
D01
main89341-WAA60×2i202207
D02
main89341-WAA64×2i202207
D13
main89341-WAA70×2i202207
D14
main89341-WAA72×2i202207
D12
main89341-WAA81×2i202207
D19
89342SENSOR, ULTRASONIC, REAR CORNER
main89341-WAA34×2i202207
mediterran-blau metallic,D07
main89341-WAA37×2i202207
D05
main89341-WAA40×2i202207
D06
main89341-WAA43×2i202207
D08
main89341-WAA46×2i202207
D09
main89341-WAA53×2i202207
D01
main89341-WAA56×2i202207
blue-stone metallic,D03
main89341-WAA59×2i202207
D02
main89341-WAA62×2i202207
D04
main89341-WAA63×2i202207
D13
main89341-WAA68×2i202207
D14
main89341-WAA71×2i202207
D12
main89341-WAA89×2i202207
D19
89342ASENSOR, ULTRASONIC, REAR CENTER
main89341-WAA50×2i202207
89349DRING, O (FOR ULTRASONIC SENSOR)
main89348-WAA01×4i202207

5 parts on this diagram · 3 diagrams in section
