HEADLAMP

0001 1 0002 1 0003 1

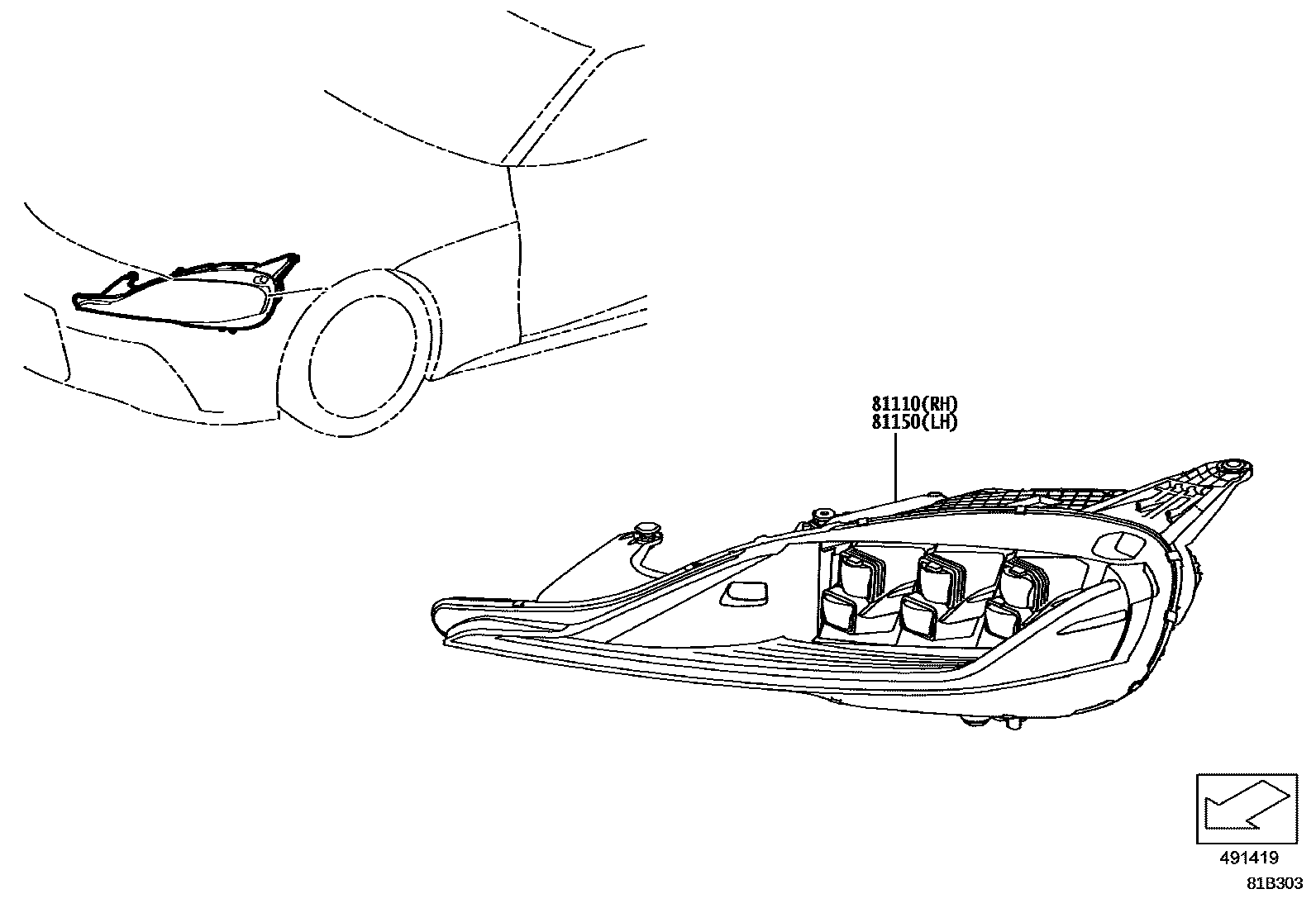

81110HEADLAMP ASSY, RH

main81145-WAA02iDB06,26,46202207-202401

sub81145-WAA11

main81145-WAA06iDB05,25,45,85202207

sub81145-WAA09

main81145-WAA11iDB06,26,46202401

81150HEADLAMP ASSY, LH

main81185-WAA02iDB06,26,46202207-202401

main81185-WAA06iDB05,25,45,85202207

sub81185-WAA10

main81185-WAA11iDB06,26,46202401

2 parts on this diagram · 3 diagrams in section
