BACK DOOR LOCK & HANDLE

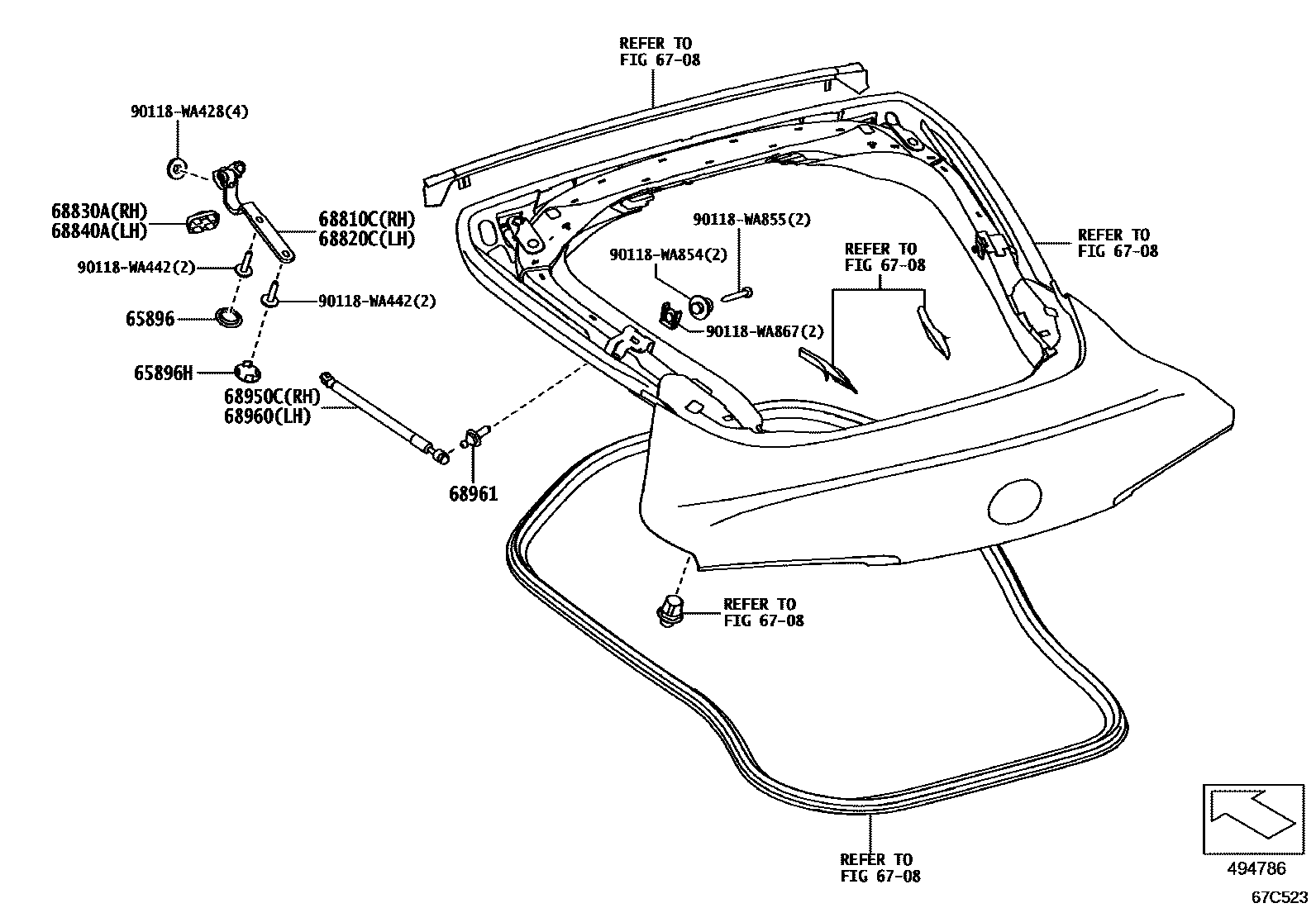

0001 1BACK DOOR HINGE 0002 1BACK DOOR LOCK & STRIKER

65896CAP, SET BOLT

main90118-WA444×2iDB0#,2#,4#,85202207

65896HCAP, COVER TOP SET BOLT, B

main90118-WA400×2iDB0#,2#,4#,85202207

6708

68810CHINGE ASSY, BACK DOOR, RH

main64571-WAA01iDB0#,2#,4#,85202207

68820CHINGE ASSY, BACK DOOR, LH

main64572-WAA01iDB0#,2#,4#,85202207

68830ACOVER, BACK DOOR HINGE, RH

main90118-WA450iDB0#,2#,4#,85202207

68840ACOVER, BACK DOOR HINGE, LH

main90118-WA450iDB0#,2#,4#,85202207

68950CSTAY ASSY, BACK DOOR, RH

main68950-WAA01iDB0#,2#,4#,85202207

68960STAY ASSY, BACK DOOR, LH

main68950-WAA01iDB0#,2#,4#,85202207

68961BOLT, BACK DOOR STAY

main68961-WAA01×2iDB0#,2#,4#,85202207

90118WA428

main90118-WA428

90118WA442

main90118-WA442

90118WA854

main90118-WA854

90118WA855

main90118-WA855

90118WA867

main90118-WA867

15 parts on this diagram · 2 diagrams in section
