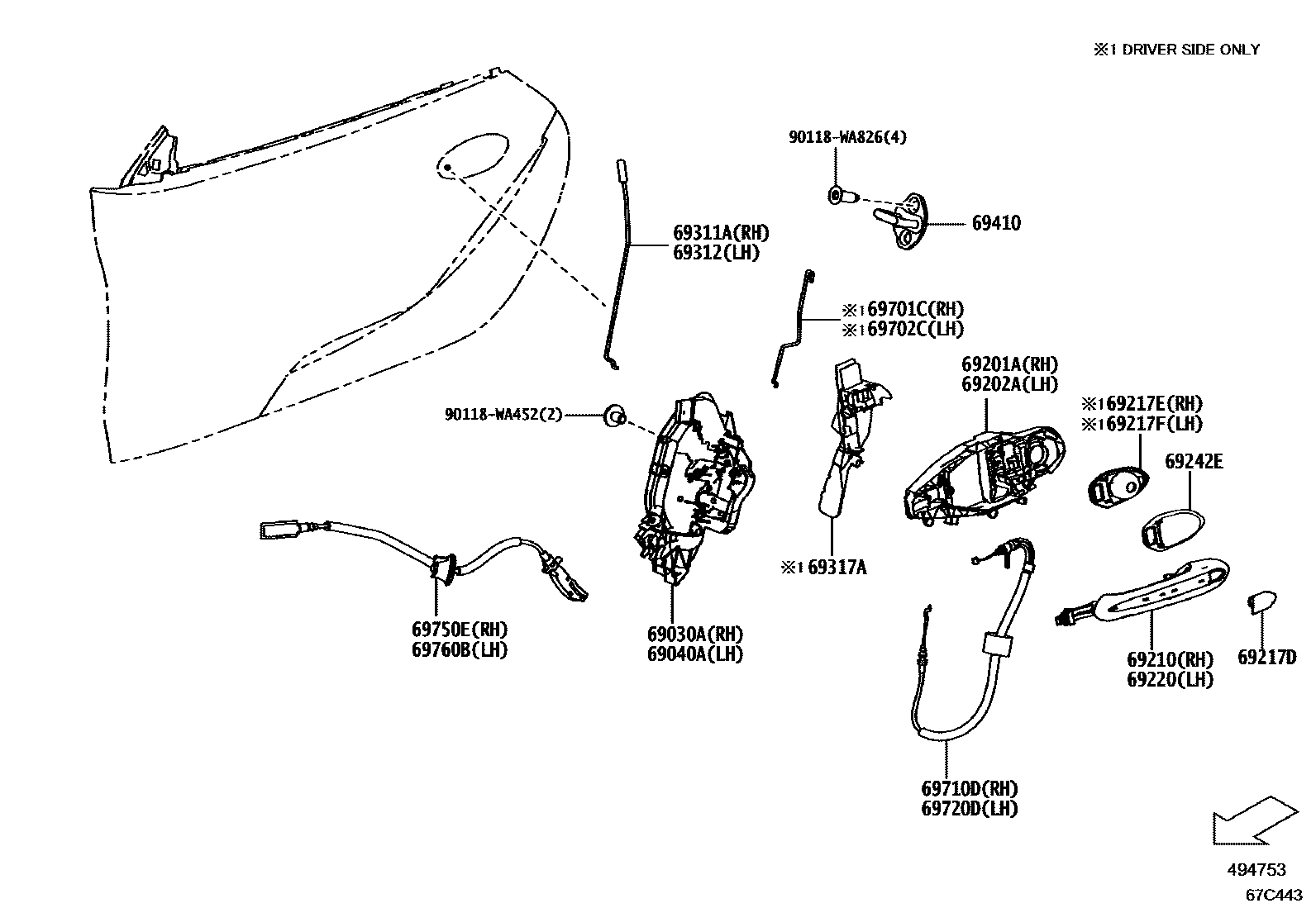

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-WAA07supersedes 69030-WAA05iDB06,26,46202207

ANTI-THEFT SYSTEM-WITH

main69030-WAA08supersedes 69030-WAA06iDB05,25,45,85202207

ANTI-THEFT SYSTEM-WITH

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-WAA07supersedes 69040-WAA05iDB05,25,45,85202207

ANTI-THEFT SYSTEM-WITH

main69040-WAA08supersedes 69040-WAA06iDB06,26,46202207

ANTI-THEFT SYSTEM-WITH

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-WAA02iDB0#,2#,4#,85202207

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-WAA02iDB0#,2#,4#,85202207

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-WAA01iDB05,25,45,85202207

D05

main69210-WAA02iDB05,25,45,85202207

D06

main69210-WAA03iDB05,25,45,85202207

D04

main69210-WAA05iDB05,25,45,85202207

D01

main69210-WAA08iDB05,25,45,85202207

D08

main69210-WAA32iDB06,26,46202207

NO PAINT REQ.,D04

main69210-WAA34iDB06,26,46202207

NO PAINT REQ.,D01

main69210-WAA38iDB06,26,46202207

NO PAINT REQ.,D08

main69210-WAA39iDB06,26,46202207

NO PAINT REQ.,D05

main69210-WAA40iDB06,26,46202207

NO PAINT REQ.,D06

main69210-WAA41iDB06,26,46202207

D14

main69210-WAA42iDB05,25,45,85202207

D13,##

main69210-WAA43iDB06,26,46202207

D12

main69210-WAA44iDB05,25,45,85202207

D12

main69210-WAA45iDB05,25,45,85202207

D13

main69210-WAA46iDB06,26,46202207

D13

main69210-WAA47iDB06,26,46202207

D01

main69210-WAA48iDB06,26,46202207

D04

main69210-WAA49iDB06,26,46202207

D14

main69210-WAA50iDB06,26,46202207

D13

main69210-WAA51iDB06,26,46202207

D08

main69210-WAA52iDB06,26,46202207

D12

main69210-WAA53iDB06,26,46202207

D05

main69210-WAA54iDB06,26,46202207

D06

main69210-WAA55iDB05,25,45,85202207

D19

main69210-WAA56iDB06,26,46202207

D19

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-WAA01×2iDB0#,2#,4#,85202207

PAINT REQ.

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69241-WAA01iDB06,26,46202207

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69242-WAA01iDB05,25,45,85202207

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-WAA01iDB06,26,46202207

NO PAINT REQ.,D05

main69220-WAA02iDB06,26,46202207

NO PAINT REQ.,D06

main69220-WAA03iDB06,26,46202207

NO PAINT REQ.,D04

main69220-WAA05iDB06,26,46202207

NO PAINT REQ.,D01

main69220-WAA08iDB06,26,46202207

NO PAINT REQ.,D08

main69220-WAA32iDB05,25,45,85202207

D04

main69220-WAA34iDB05,25,45,85202207

D01

main69220-WAA38iDB05,25,45,85202207

D08

main69220-WAA39iDB05,25,45,85202207

D05

main69220-WAA40iDB05,25,45,85202207

D06

main69220-WAA41iDB05,25,45,85202207

D14

main69220-WAA42iDB06,26,46202207

D14

main69220-WAA43iDB05,25,45,85202207

D12

main69220-WAA44iDB06,26,46202207

D12

main69220-WAA45iDB06,26,46202207

D13

main69220-WAA46iDB05,25,45,85202207

D13

main69220-WAA47iDB05,25,45,85202207

D01

main69220-WAA48iDB05,25,45,85202207

D04

main69220-WAA49iDB05,25,45,85202207

D14

main69220-WAA50iDB05,25,45,85202207

D13

main69220-WAA51iDB05,25,45,85202207

D08

main69220-WAA52iDB05,25,45,85202207

D12

main69220-WAA53iDB05,25,45,85202207

D05

main69220-WAA54iDB05,25,45,85202207

D06

main69220-WAA55iDB06,26,46202207

D19

main69220-WAA56iDB05,25,45,85202207

D19

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-WAA02iDB06,26,46202207

main69242-WAA03iDB05,25,45,85202207

69311AROD, FRONT DOOR LOCK OPEN, RH

main69711-WAA01iDB0#,2#,4#,85202207

69312ROD, FRONT DOOR LOCK OPEN, LH

main69712-WAA01iDB0#,2#,4#,85202207

69317ASPACER, DOOR LOCK

main69293-WAA01iDB05,25,45,85202207

main69293-WAA02iDB06,26,46202207

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-WAA01×2iDB0#,2#,4#,85202207

69701CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH

main69311-WAA01iDB06,26,46202207

69702CLINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH

main69312-WAA01iDB05,25,45,85202207

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69750-WAA01iDB0#,2#,4#,85202207

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69750-WAA01iDB0#,2#,4#,85202207

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69710-WAA01iDB0#,2#,4#,85202207

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69710-WAA01iDB0#,2#,4#,85202207

90118WA452

main90118-WA452

90118WA826

main90118-WA826

22 parts on this diagram · 2 diagrams in section
