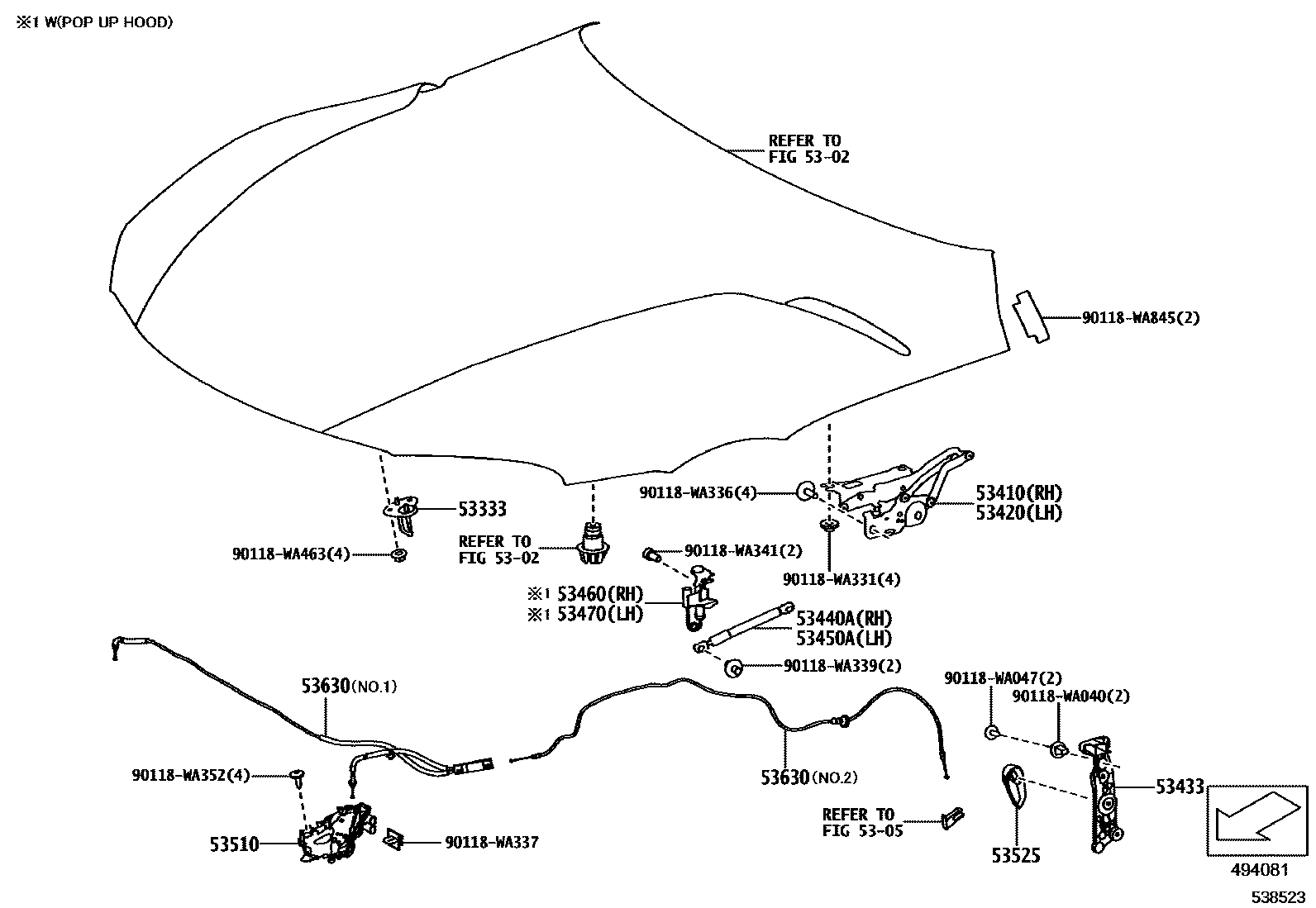

HOOD LOCK & HINGE

5302

5305

53333STRIKER, HOOD LOCK

main53306-WAA01×2iDB0#,2#,4#,85202207

53410HINGE ASSY, HOOD, RH

main53410-WAA01iDB0#,2#,4#,85202207

53420HINGE ASSY, HOOD, LH

main53420-WAA01iDB0#,2#,4#,85202207

53433BRACKET, HOOD SUPPORT

main55771-WAA01iDB05,25,45,85202207

main55771-WAA02iDB06,26,46202207

53440ASUPPORT ASSY, HOOD, RH

main53440-WAA01iDB0#,2#,4#,85202207

53450ASUPPORT ASSY, HOOD, LH

main53440-WAA01iDB0#,2#,4#,85202207

53460LIFTER ASSY, POP UP HOOD, RH

main53460-WAA01iDB0#,2#,4#,85202207

POP UP HOOD-WITH

53470LIFTER ASSY, POP UP HOOD, LH

main53470-WAA01iDB0#,2#,4#,85202207

POP UP HOOD-WITH

53510LOCK ASSY, HOOD

main53510-WAA02supersedes 53510-WAA03iDB0#,2#,4#,85202207

POP UP HOOD-WITH,RH

main53510-WAA04supersedes 53510-WAA03iDB0#,2#,4#,85202207

POP UP HOOD-WITH,LH

53525PROTECTOR, HOOD LOCK RELEASE LEVER

main53601-WAA01iDB05,25,45,85202207

main53601-WAA02iDB06,26,46202207

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-WAA01iDB0#,2#,4#,85202207

NO.1

main63630-WAA01iDB0#,2#,4#,85202207

NO.2

90118WA040

main90118-WA040

90118WA047

main90118-WA047

90118WA331

main90118-WA331

90118WA336

main90118-WA336

90118WA337

main90118-WA337

90118WA339

main90118-WA339

90118WA341

main90118-WA341

90118WA352

main90118-WA352

90118WA463

main90118-WA463

90118WA845

main90118-WA845

23 parts on this diagram · 1 diagram in section
