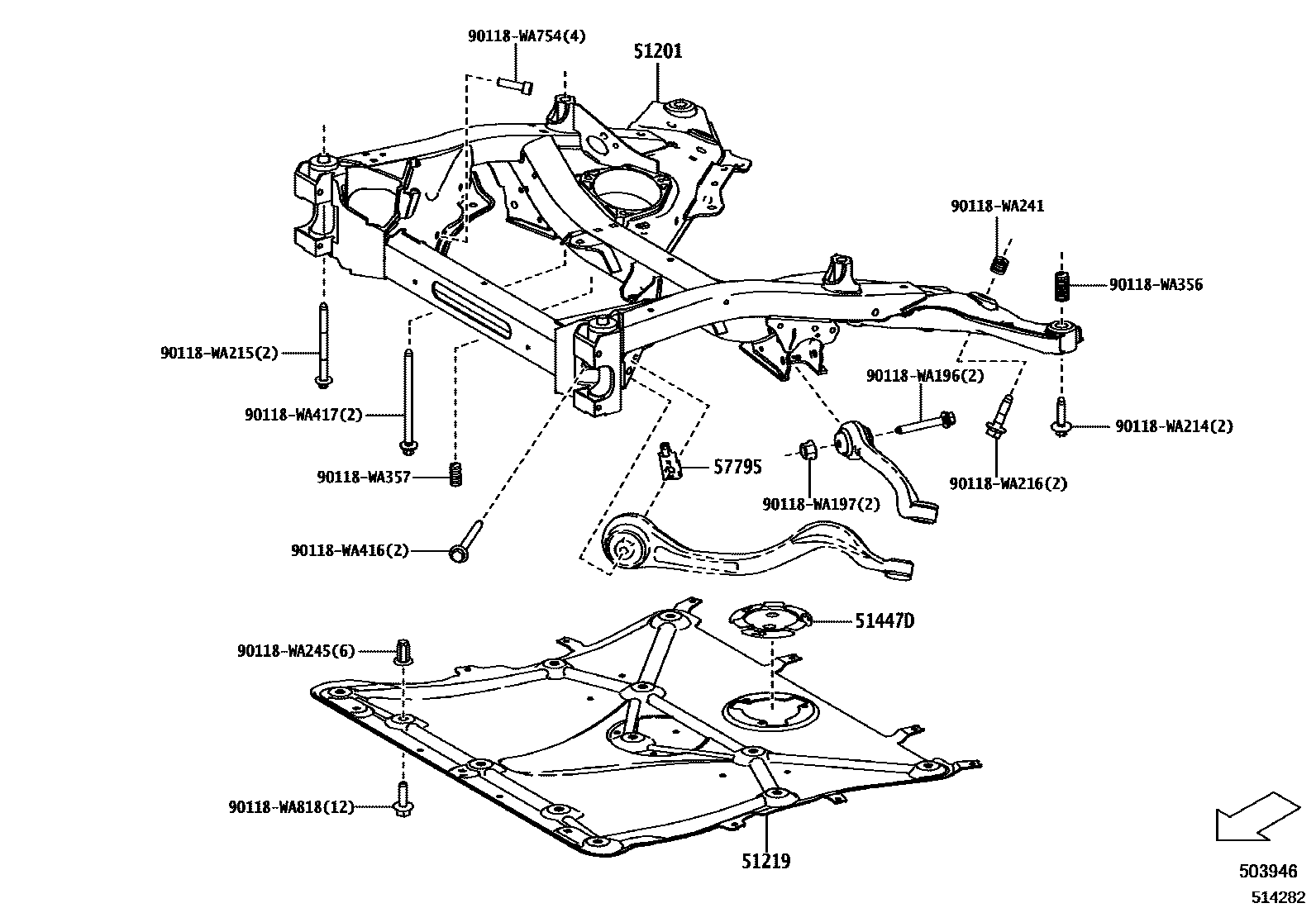

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-WAA01iDB0#,2#,4#,85202207

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51202-WAA01iDB0#,2#,4#,85202207

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-WAA01iDB0#,2#,4#,85202207

57795NUT, SUSPENSION MENBER BODY BRACKET

main90118-WA198×2iDB0#,2#,4#,85202207

90118WA196

main90118-WA196

90118WA197

main90118-WA197

90118WA214

main90118-WA214

90118WA215

main90118-WA215

90118WA216

main90118-WA216

90118WA241

main90118-WA241

90118WA245

main90118-WA245

90118WA356

main90118-WA356

90118WA357

main90118-WA357

90118WA416

main90118-WA416

90118WA417

main90118-WA417

90118WA754

main90118-WA754

90118WA818

main90118-WA818

17 parts on this diagram · 4 diagrams in section
