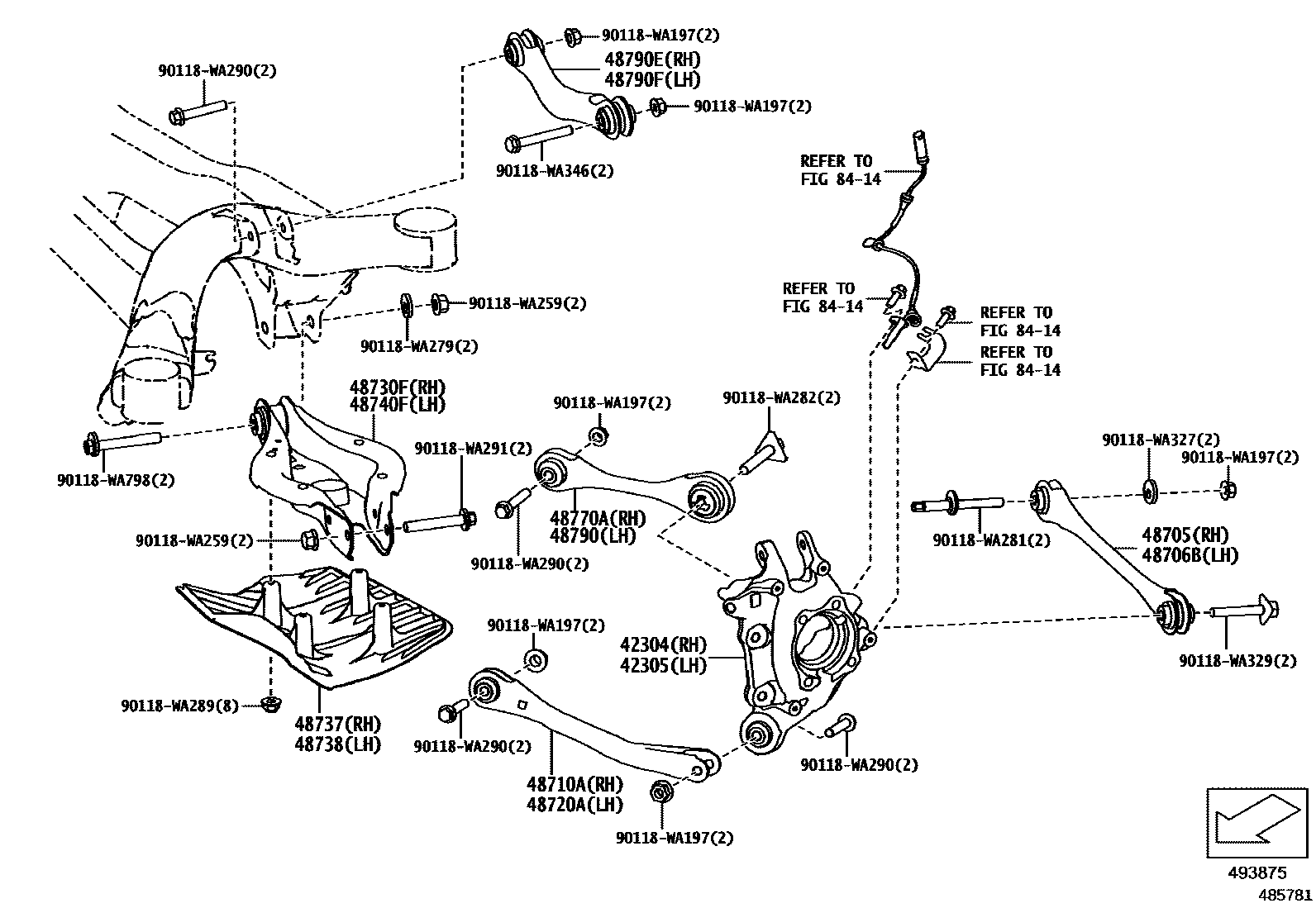

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1W(AVS)

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-WAA01iDB0#,2#,4#,85202207

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-WAA01iDB0#,2#,4#,85202207

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-WAA01iDB0#,2#,4#,85202207

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48705-WAA01iDB0#,2#,4#,85202207

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48711-WAA01iDB0#,2#,4#,85202207

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48711-WAA01iDB0#,2#,4#,85202207

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-WAA01supersedes 48740-WAA01iDB0#,2#,4#,85202207

AVS-WITH

48737COVER, REAR SUSPENSION ARM, RH

main48737-WAA01iDB0#,2#,4#,85202207

48738COVER, REAR SUSPENSION ARM, LH

main48738-WAA01iDB0#,2#,4#,85202207

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-WAA01supersedes 48740-WAA01iDB0#,2#,4#,85202207

AVS-WITH

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-WAA02iDB0#,2#,4#,85202207

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-WAA01iDB0#,2#,4#,85202207

48790EARM ASSY, UPPER CONTROL, REAR RH NO.2

main48790-WAA01iDB0#,2#,4#,85202207

48790FARM ASSY, UPPER CONTROL, REAR LH NO.2

main48790-WAA01iDB0#,2#,4#,85202207

8414

90118WA197

main90118-WA197

90118WA259

main90118-WA259

90118WA279

main90118-WA279

90118WA281

main90118-WA281

90118WA282

main90118-WA282

90118WA289

main90118-WA289

90118WA290

main90118-WA290

90118WA291

main90118-WA291

90118WA327

main90118-WA327

90118WA329

main90118-WA329

90118WA346

main90118-WA346

90118WA798

main90118-WA798

27 parts on this diagram · 4 diagrams in section
